AZ742 - 10A DPDT MINIATURE POWER RELAY

Zettler

Key Features

Dielectric strength 5000 Vrms Low height: 15.7 mm Epoxy sealed version available 10 Amp switching (N. O. contact only) AC and DC coils Isolation spacing greater than 10 mm Proof tracking index (PTI/CTI) 250 Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1).
UL, CUR file E43203.
VDE file 40012572.

AZ742 10a dpdt miniature power relay by Zettler - Datasheet Preview

Datasheet Details

Part number	AZ742
Manufacturer	Zettler
File Size	1.21 MB
Description	10A DPDT MINIATURE POWER RELAY
Datasheet	AZ742 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ7023R	VOLTAGE DETECTOR	BCD Semiconductor
AZ7023Z	VOLTAGE DETECTOR	BCD Semiconductor
AZ7025R	VOLTAGE DETECTOR	BCD Semiconductor
AZ7025Z	VOLTAGE DETECTOR	BCD Semiconductor
AZ7027R	VOLTAGE DETECTOR	BCD Semiconductor

Other Datasheets by Zettler

Part Number	Description
AZ762P	POWER RELAY
AZ762T	16 AMP HIGH INRUSH MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

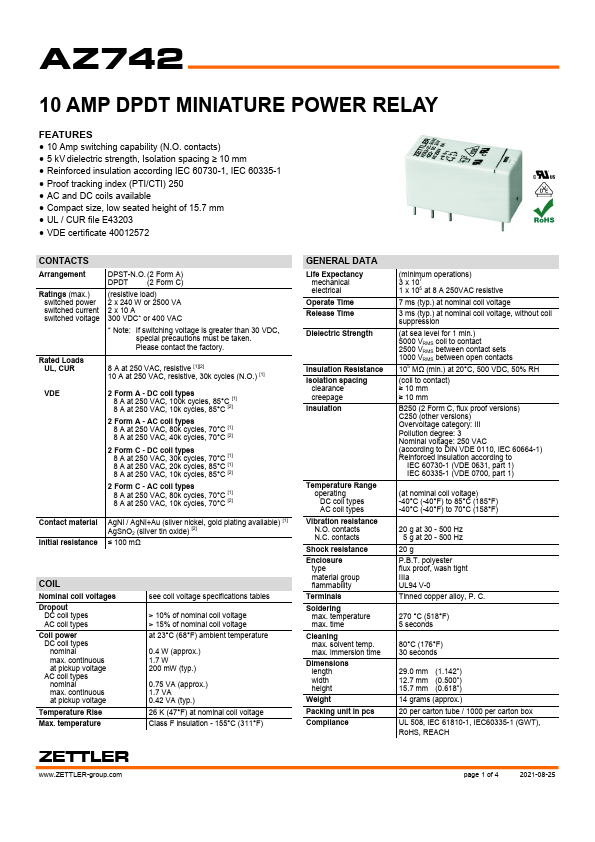

AZ742 10 A DPDT MINIATURE POWER RELAY FEATURES • • • • • • • • Dielectric strength 5000 Vrms Low height: 15.7 mm Epoxy sealed version available 10 Amp switching (N.O. contact only) AC and DC coils Isolation spacing greater than 10 mm Proof tracking index (PTI/CTI) 250 Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1) • UL, CUR file E43203 • VDE file 40012572 CONTACTS Arrangement Ratings DPDT (2 Form C) DPST (2 Form A) Resistive load: Max. switched power: 2 X 240 W or 2000 VA Max. switched current: 2 X 10 A Max. switched voltage: 300 VDC* or 400 VAC * Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
