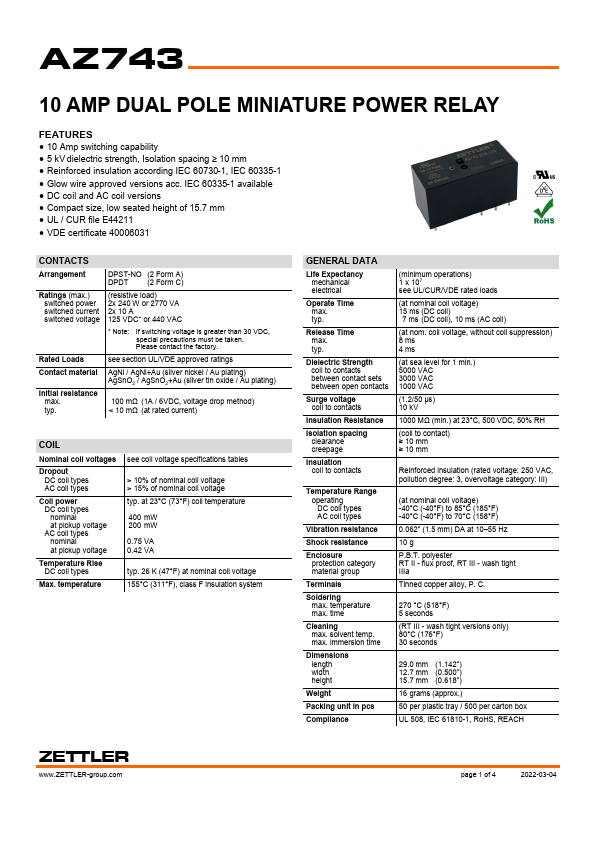

Datasheet Summary
10 AMP DUAL POLE MINIATURE POWER RELAY
Features
- 10 Amp switching capability
- 5 kV dielectric strength, Isolation spacing ≥ 10 mm
- Reinforced insulation according IEC 60730-1, IEC 60335-1
- Glow wire approved versions acc. IEC 60335-1 available
- DC coil and AC coil versions
- pact size, low seated height of 15.7 mm
- UL / CUR file E44211
- VDE certificate 40006031
CONTACTS
Arrangement
DPST-NO (2 Form A) DPDT (2 Form C)
Ratings (max.) switched power switched current switched voltage
(resistive load) 2x 240 W or 2770 VA 2x 10 A 125 VDC- or 440 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
Rated...
