AZ9701 - (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY

Key Features

  • Up to 45 Amp switching capability in a compact size Epoxy sealed versions available Coils to 24 VDC Small footprint 1 Form A and C contacts available Vibration and shock resistant ISO/TS 16949, ISO9001, ISO14000 Tested in accordance with SAE J2544 Cost effective Designed for high in-rush.

📥 Download Datasheet

Datasheet Details

Part number AZ9701
Manufacturer Zettler
File Size 142.20 KB
Description (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
Datasheet download datasheet AZ9701 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ970 (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY ZETTLER Electronics
AZ971 (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY ZETTLER Electronics
AZ9731F RELAY American Zettler
AZ9731T RELAY American Zettler
AZ978 MINIATURE POWER RELAY American Zettler

Other Datasheets by Zettler

Part Number Description
AZ9701E (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
AZ9711 (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
AZ9711E (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
AZ9721 40 AMP AUTOMOTIVE RELAY
AZ9722 30 AMP MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

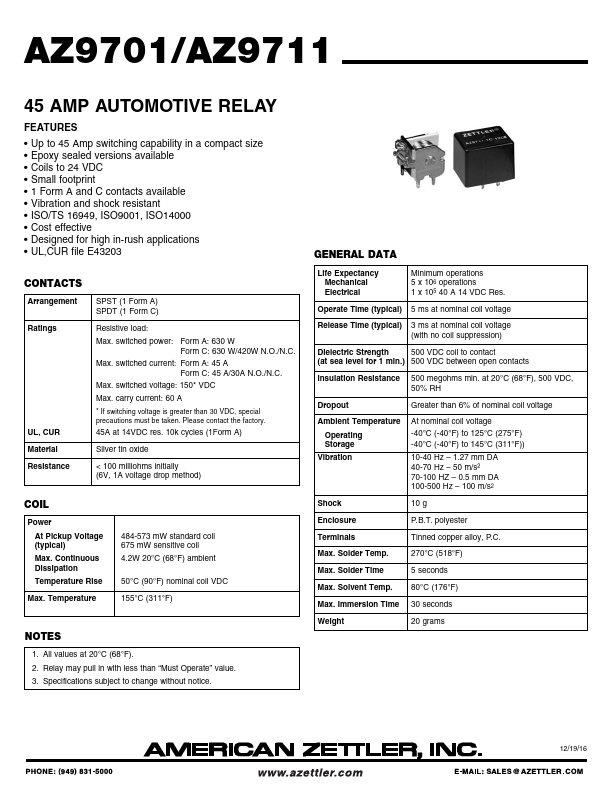

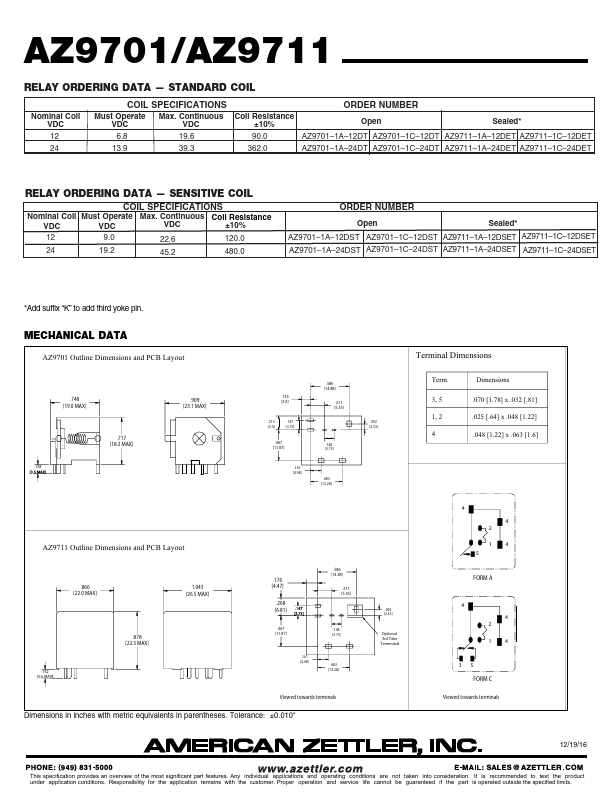

AZ9701/AZ9711 45 AMP AUTOMOTIVE RELAY FEATURES • • • • • • • • • • • Up to 45 Amp switching capability in a compact size Epoxy sealed versions available Coils to 24 VDC Small footprint 1 Form A and C contacts available Vibration and shock resistant ISO/TS 16949, ISO9001, ISO14000 Tested in accordance with SAE J2544 Cost effective Designed for high in-rush applications UL,CUR file E43203 GENERAL DATA Life Expectancy Mechanical Electrical Minimum operations 5 x 106 operations 1 x 105 40 A 14 VDC Res. 5 ms at nominal coil voltage 3 ms at nominal coil voltage (with no coil suppression) CONTACTS Arrangement Ratings SPST (1 Form A) SPDT (1 Form C) Resistive load: Max. switched power: Form A: 630 W Form C: 630 W/420W N.O./N.C. Max. switched current: Form A: 45 A Form C: 45 A/30A N.O./N.C. Max.
