AZ970 - (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY

Key Features

  • Low cost Up to 40 Amp switching capability in a compact size Open, covered or sealed Coils to 24 VDC Small footprint 1 Form A, B and C contacts available Vibration and shock resistant Designed for high in-rush.

📥 Download Datasheet

Datasheet Details

Part number AZ970
Manufacturer ZETTLER Electronics
File Size 102.42 KB
Description (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY
Datasheet download datasheet AZ970 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ9701 (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY Zettler
AZ9701E (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY Zettler
AZ9711 (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY Zettler
AZ9711E (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY Zettler
AZ9721 40 AMP AUTOMOTIVE RELAY Zettler

Other Datasheets by ZETTLER Electronics

Part Number Description
AZ971 (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY
AZ934 20 AMP SUB-MINIATURE POWER RELAY
AZ935 20 AMP SUB-MINIATURE POWER RELAY
AZ936 10 AMP LOW PROFILE POWER RELAY
AZ937 SENSITIVE SUBMINIATURE RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

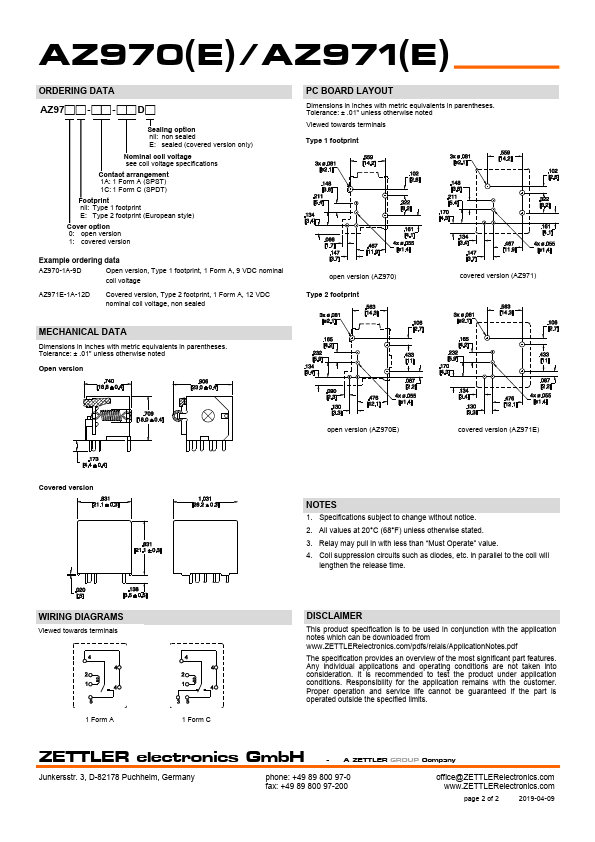

AZ970/AZ971 40 AMP MINIATURE POWER RELAY FOR AUTOMOTIVE USE FEATURES • • • • • • • • Low cost Up to 40 Amp switching capability in a compact size Open, covered or sealed Coils to 24 VDC Small footprint 1 Form A, B and C contacts available Vibration and shock resistant Designed for high in-rush applications GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (typical) Minimum operations 5 x 106 operations 1 x 105 operations at 40 A 14 VDC Res. 3 ms at nominal coil voltage 5 ms at nominal coil voltage (with no coil suppression) CONTACTS Arrangement SPST (1 Form A) SPST (1 Form B) SPDT (1 Form C) Resistive load: Max. switched power: Form A: 560 W Form B: 420 W Form C: 420 W Max. switched current: Form A: 40 A Form B: 30 A Form C: 30 A Max.
