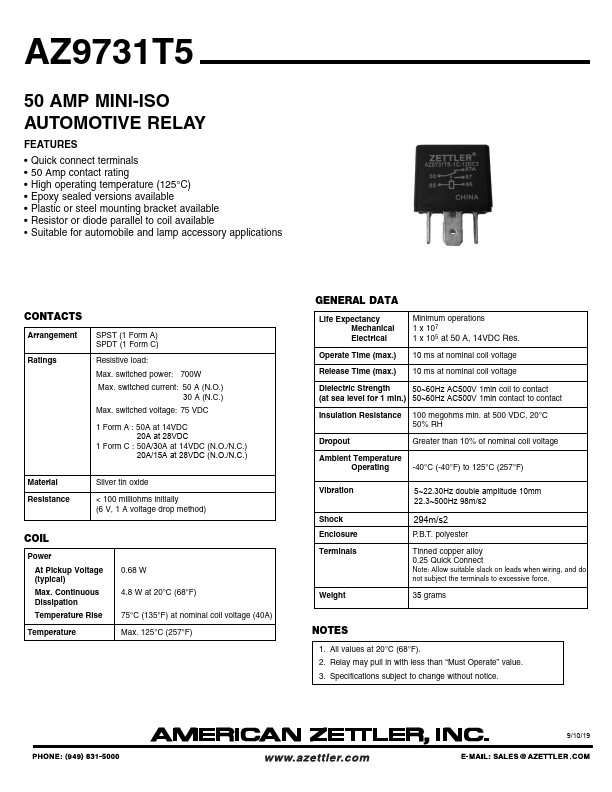

AZ9731T5
FEATURES
- Quick connect terminals
- 50 Amp contact rating
- High operating temperature (125°C)
- Epoxy sealed versions available
- Plastic or steel mounting bracket available
- Resistor or diode parallel to coil available
- Suitable for automobile and lamp accessory applications
CONTACTS
Arrangement
Ratings
SPST (1 Form A) SPDT (1 Form C)
Resistive load:
Max. switched power: 700W
Max. switched current: 50 A (N.O.) 30 A (N.C.)
Max. switched voltage: 75 VDC
1 Form A : 50A at 14VDC 20A at 28VDC
1 Form C : 50A/30A at 14VDC (N.O./N.C.) 20A/15A at 28VDC (N.O./N.C.)
Material Resistance
Silver tin oxide
< 100 milliohms initially (6 V, 1 A voltage drop method)
COIL
Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise
Temperature
0.68 W 4.8 W at 20°C (68°F) 75°C (135°F) at nominal coil voltage (40A) Max. 125°C (257°F)
GENERAL DATA
Life Expectancy Mechanical Electrical
Minimum operations 1 x 107 1 x 105 at 50 A, 14VDC Res.
Operate Time (max.) 10 ms at nominal...
