AZ9731 - 40 AMP MINI-ISO AUTOMOTIVE RELAY

Key Features

  • Quick connect terminals 40 Amp contact rating High operating temperature (125°C) Epoxy sealed versions available Plastic or steel mounting bracket available Resistor or diode parallel to coil available ISO/TS 16949, ISO14001 Tested in accordance with SAE J2544.

📥 Download Datasheet

Datasheet Details

Part number AZ9731
Manufacturer Zettler
File Size 219.09 KB
Description 40 AMP MINI-ISO AUTOMOTIVE RELAY
Datasheet download datasheet AZ9731 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ9731F RELAY American Zettler
AZ9731T RELAY American Zettler
AZ970 (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY ZETTLER Electronics
AZ971 (AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY ZETTLER Electronics
AZ978 MINIATURE POWER RELAY American Zettler

Other Datasheets by Zettler

Part Number Description
AZ973 40 AMP AUTOMOTIVE RELAY
AZ9701 (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
AZ9701E (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY
AZ9711 (AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY
AZ9711E (AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

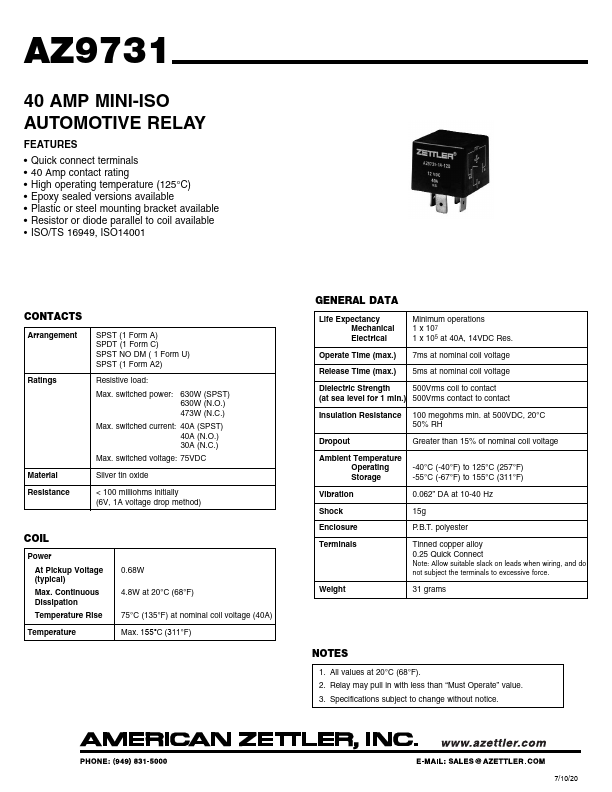

AZ9731 40 AMP MINI-ISO AUTOMOTIVE RELAY FEATURES • • • • • • • • Quick connect terminals 40 Amp contact rating High operating temperature (125°C) Epoxy sealed versions available Plastic or steel mounting bracket available Resistor or diode parallel to coil available ISO/TS 16949, ISO14001 Tested in accordance with SAE J2544 GENERAL DATA CONTACTS Arrangement SPST (1 Form A) SPDT (1 Form C) SPST NO DM ( 1 Form U) Resistive load: Max. switched power: 630 W (SPST) 630 W (N.O.) 473 W (N.C.) Max. switched current: 40 A (SPST) 40 A (N.O.) 30 A (N.C.) Max. switched voltage: 75 VDC Material Resistance Silver tin oxide < 100 milliohms initially (6 V, 1 A voltage drop method) Ambient Temperature Operating Storage Vibration Shock Enclosure 0.68 W 4.
