AZ9731F - RELAY

American Zettler

Key Features

Quick connect terminals.
30 Amp contact rating (30A Fuse).
Blade fuse design.
Steel mounting bracket.
ISO/TS 16949, ISO14001.

AZ9731F relay by American Zettler - Datasheet Preview

Datasheet Details

Part number	AZ9731F
Manufacturer	American Zettler
File Size	467.57 KB
Description	RELAY
Datasheet	AZ9731F Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ9731	40 AMP MINI-ISO AUTOMOTIVE RELAY	Zettler
AZ973	40 AMP AUTOMOTIVE RELAY	ZETTLER
AZ970	(AZ970 / AZ971) 40 AMP MINIATURE POWER RELAY	ZETTLER Electronics
AZ9701	(AZ9701 / AZ9711) 45 AMP AUTOMOTIVE RELAY	Zettler
AZ9701E	(AZ9701E / AZ9711E) 45 AMP AUTOMOTIVE RELAY	Zettler

Other Datasheets by American Zettler

Part Number	Description
AZ9731T	RELAY
AZ978	MINIATURE POWER RELAY
AZ920	ULTRA-SENSITIVE SUBMINIATURE RELAY
AZ9375	SUBMINIATURE RELAY
AZ9405	MINIATURE POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

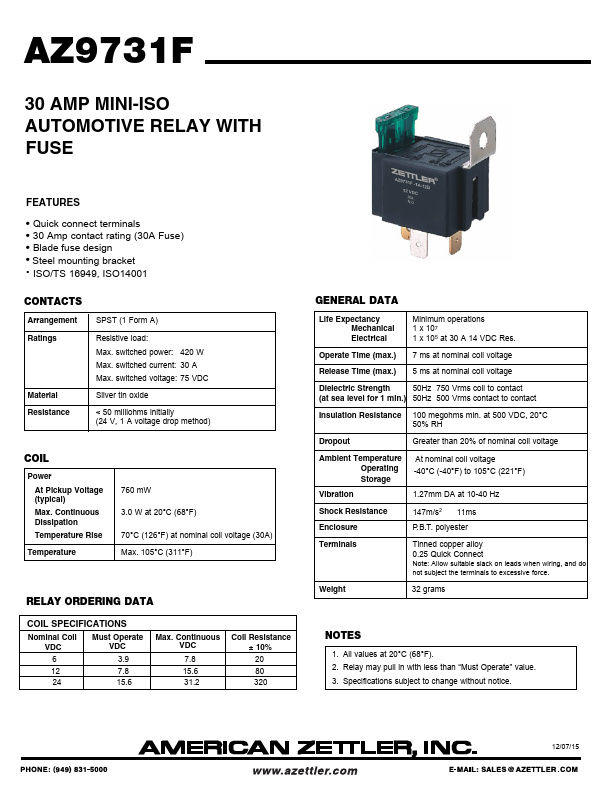

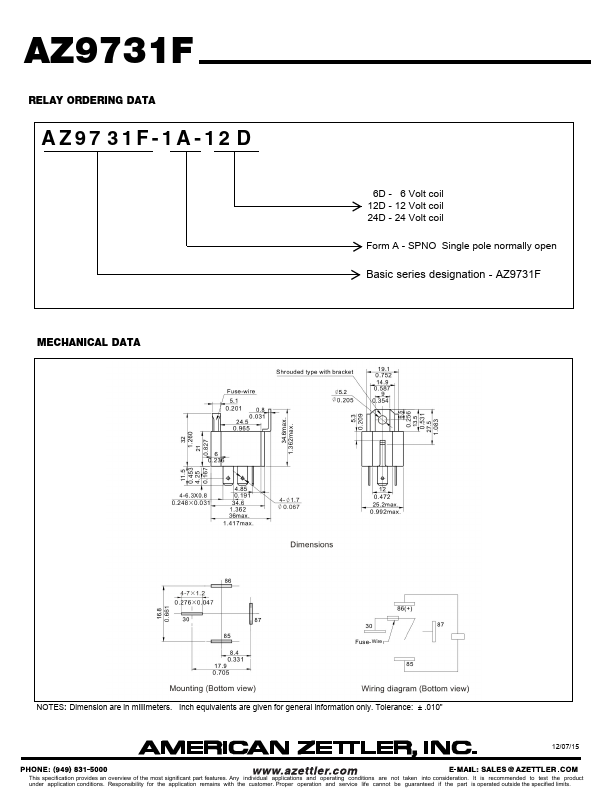

AZ9731F 30 AMP MINI-ISO AUTOMOTIVE RELAY WITH FUSE FEATURES • Quick connect terminals • 30 Amp contact rating (30A Fuse) • Blade fuse design • Steel mounting bracket • ISO/TS 16949, ISO14001 CONTACTS Arrangement Ratings Material Resistance SPST (1 Form A) Resistive load: Max. switched power: 420 W Max. switched current: 30 A Max. switched voltage: 75 VDC Silver tin oxide < 50 milliohms initially (24 V, 1 A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Temperature 760 mW 3.0 W at 20°C (68°F) 70°C (126°F) at nominal coil voltage (30A) Max. 105°C (311°F) RELAY ORDERING DATA COIL SPECIFICATIONS Nominal Coil Must Operate VDC VDC 6 3.9 12 7.8 24 15.6 Max. Continuous VDC 7.8 15.6 31.
