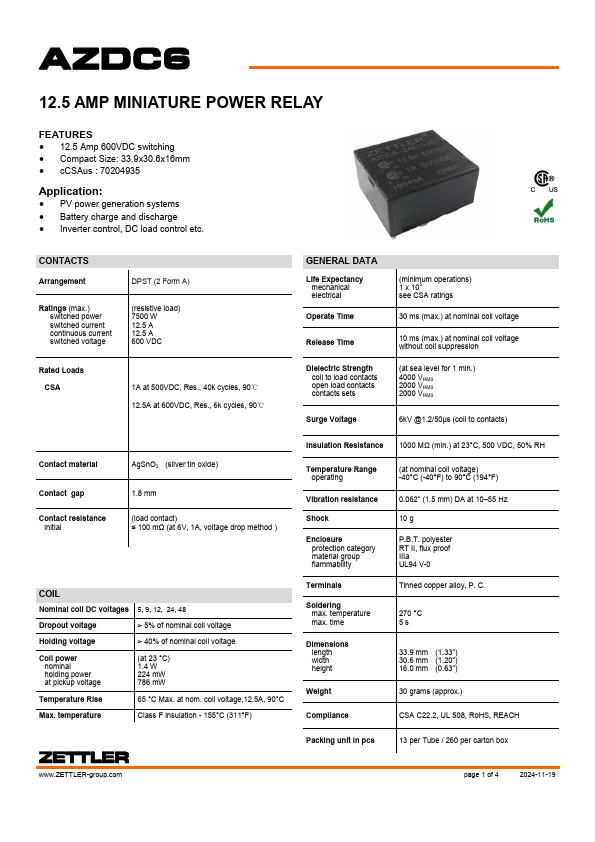

Datasheet Summary
12.5 AMP MINIATURE POWER RELAY
Features
- 12.5 Amp 600VDC switching
- pact Size: 33.9x30.6x16mm
- cCSAus : 70204935
Application:
- PV power generation systems
- Battery charge and discharge
- Inverter control, DC load control etc.
CONTACTS
Arrangement
DPST (2 Form A)
Ratings (max.) switched power switched current continuous current switched voltage
(resistive load) 7500 W 12.5 A 12.5 A 600 VDC
Rated Loads CSA
1A at 500VDC, Res., 40k cycles, 90℃ 12.5A at 600VDC, Res., 6k cycles, 90℃
Contact material
Contact gap
Contact resistance initial
AgSnO2 (silver tin oxide)
1.8 mm
(load contact) ≤ 100 mΩ (at 6V, 1A, voltage drop method )
COIL
Nominal coil DC voltages 5, 9, 12, 24,...
