| Part number | DTQ1300N02EP |
|---|---|
| Datasheet | DTQ1300N02EP-dintek.pdf |
| File Size | 1.38 MB |
| Manufacturer | Din-Tek Semiconductor |
| Description | N-Channel MOSFET |
|
|

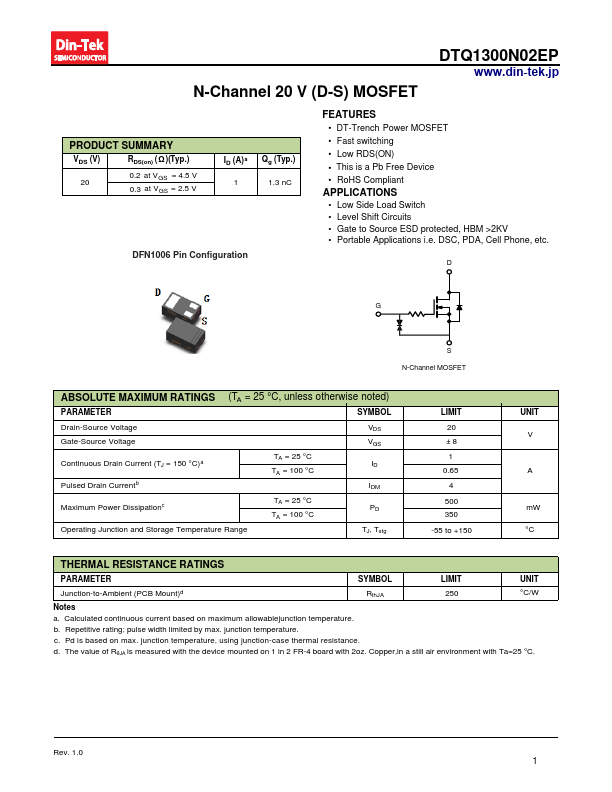

N-Channel 20 V (D-S) MOSFET DTQ1300N02EP .din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (Ω )(Typ.) 20 0.2 at VGS = 4.5 V 0.3 at VGS = 2.5 V ID (A) a Qg (Typ.) 1 1.3 nC.
