ADC3664-SP Datasheet Radiation-hardness-assured 14-bit Dual Channel Analog-to-digital Converter

Manufacturer: Texas Instruments

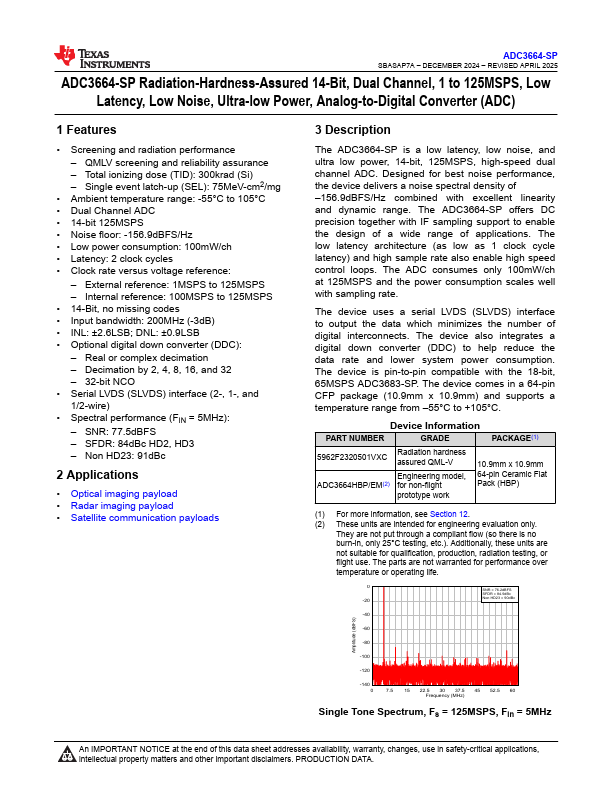

Overview: ADC3664-SP SBASAP7A – DECEMBER 2024 – REVISED APRIL 2025 ADC3664-SP Radiation-Hardness-Assured 14-Bit, Dual Channel, 1 to 125MSPS, Low Latency, Low Noise, Ultra-low Power, Analog-to-Digital Converter (ADC).

Datasheet Details

Part number ADC3664-SP
Manufacturer Texas Instruments
File Size 3.13 MB
Description Radiation-Hardness-Assured 14-Bit Dual Channel Analog-to-Digital Converter
Datasheet ADC3664-SP-etcTI.pdf

General Description

The ADC3664-SP is a low latency, low noise, and ultra low power, 14-bit, 125MSPS, high-speed dual channel ADC.

Designed for best noise performance, the device delivers a noise spectral density of –156.9dBFS/Hz combined with excellent linearity and dynamic range.

The ADC3664-SP offers DC precision together with IF sampling support to enable the design of a wide range of applications.

Key Features

  • Screening and radiation performance.
  • QMLV screening and reliability assurance.
  • Total ionizing dose (TID): 300krad (Si).
  • Single event latch-up (SEL): 75MeV-cm2/mg.
  • Ambient temperature range: -55°C to 105°C.
  • Dual Channel ADC.
  • 14-bit 125MSPS.
  • Noise floor: -156.9dBFS/Hz.
  • Low power consumption: 100mW/ch.
  • Latency: 2 clock cycles.
  • Clock rate versus voltage reference:.
  • External reference: 1MSPS t.
