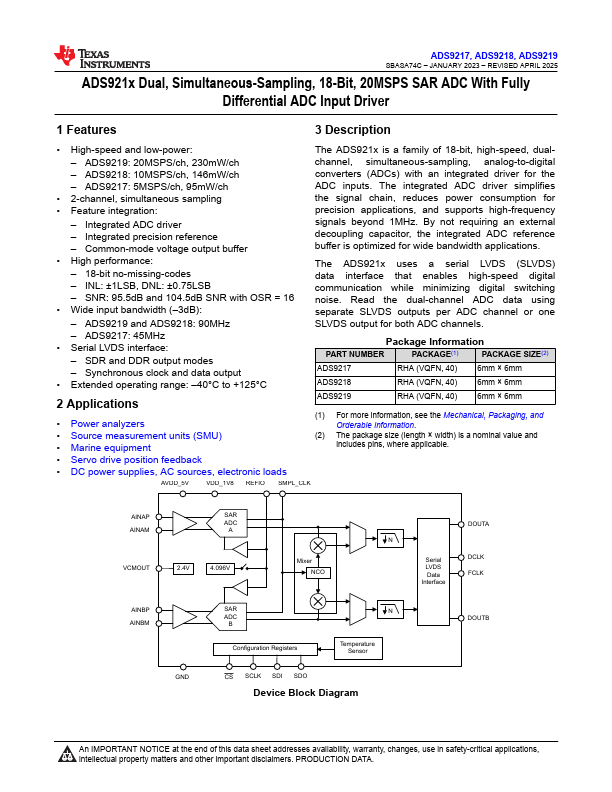

ADS9217
ADS9217 is 18-Bit 20MSPS SAR ADC manufactured by Texas Instruments.
Features
3 Description
- High-speed and low-power:
- ADS9219: 20MSPS/ch, 230m W/ch
- ADS9218: 10MSPS/ch, 146m W/ch
- ADS9217: 5MSPS/ch, 95m W/ch
- 2-channel, simultaneous sampling
- Feature integration:
- Integrated ADC driver
- Integrated precision reference
- mon-mode voltage output buffer
- High performance:
- 18-bit no-missing-codes
- INL: ±1LSB, DNL: ±0.75LSB
- SNR: 95.5d B and 104.5d B SNR with OSR = 16
- Wide input bandwidth (- 3d B):
- ADS9219 and ADS9218: 90MHz
- ADS9217: 45MHz
- Serial LVDS interface:
- SDR and DDR output modes
- Synchronous clock and data output
- Extended operating range:
- 40°C to +125°C
2 Applications
- Power analyzers
- Source measurement units (SMU)
- Marine equipment
- Servo drive position feedback
- DC power supplies, AC sources, electronic loads
The ADS921x is a family of 18-bit, high-speed, dualchannel, simultaneous-sampling, analog-to-digital converters (ADCs) with an integrated driver for the ADC inputs. The integrated ADC driver simplifies the signal chain, reduces power consumption for precision applications, and supports high-frequency signals beyond 1MHz. By not requiring an external decoupling capacitor, the integrated ADC reference buffer is optimized for wide bandwidth applications.
The ADS921x uses a serial LVDS (SLVDS) data interface that enables high-speed digital munication while minimizing digital switching noise. Read the dual-channel ADC data using separate SLVDS outputs per ADC channel or one SLVDS output for both ADC channels.
Package Information
PART NUMBER
PACKAGE(1)
PACKAGE SIZE(2)
RHA (VQFN, 40)
6mm × 6mm
ADS9218
RHA (VQFN, 40)
6mm ×...
