AM2612-Q1

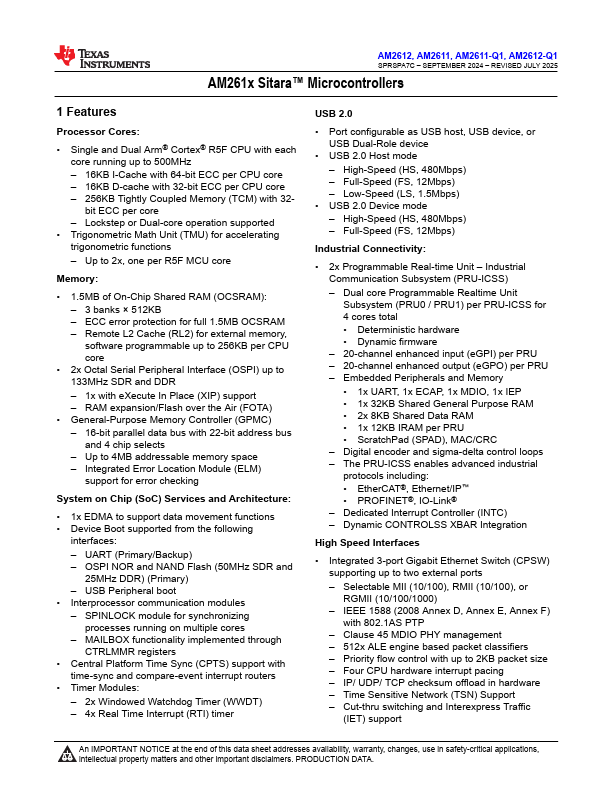

Features
Processor Cores:
- Single and Dual Arm® Cortex® R5F CPU with each core running up to 500MHz
- 16KB I-Cache with 64-bit ECC per CPU core
- 16KB D-cache with 32-bit ECC per CPU core
- 256KB Tightly Coupled Memory (TCM) with 32bit ECC per core
- Lockstep or Dual-core operation supported
- Trigonometric Math Unit (TMU) for accelerating trigonometric functions
- Up to 2x, one per R5F MCU core
Memory:
- 1.5MB of On-Chip Shared RAM (OCSRAM):
- 3 banks × 512KB
- ECC error protection for full 1.5MB OCSRAM
- Remote L2 Cache (RL2) for external memory, software programmable up to 256KB per CPU core
- 2x Octal Serial Peripheral Interface (OSPI) up to 133MHz SDR and DDR
- 1x with e Xecute In Place (XIP) support
- RAM expansion/Flash over the Air (FOTA)
- General-Purpose Memory Controller (GPMC)
- 16-bit parallel data bus with 22-bit address bus and 4 chip selects
- Up to 4MB addressable memory space
- Integrated Error Location Module (ELM) support for error checking
System on Chip (So C)...
