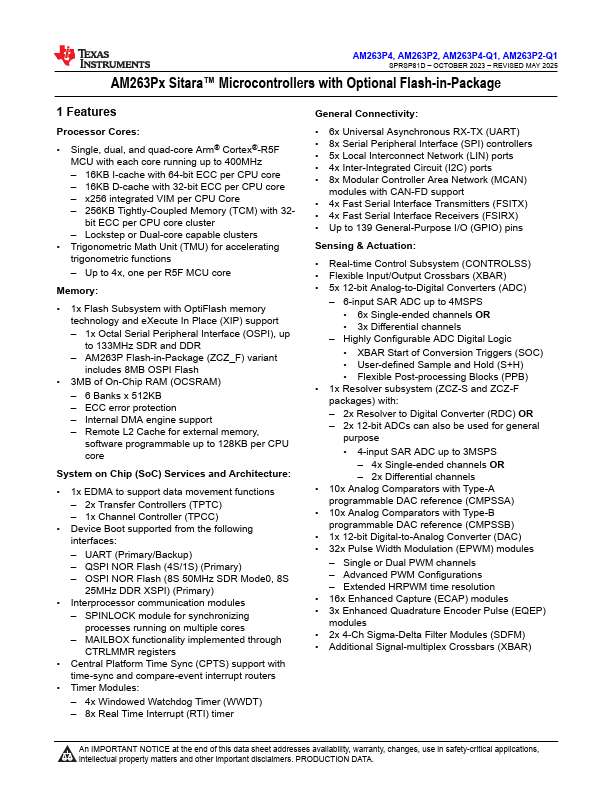

Datasheet Summary
AM263P4, AM263P2, AM263P4-Q1, AM263P2-Q1
SPRSP81D
- OCTOBER 2023
- REVISED MAY 2025
AM263Px Sitara™ Microcontrollers with Optional Flash-in-Package
1 Features
Processor Cores:
- Single, dual, and quad-core Arm® Cortex®-R5F MCU with each core running up to 400MHz
- 16KB I-cache with 64-bit ECC per CPU core
- 16KB D-cache with 32-bit ECC per CPU core
- x256 integrated VIM per CPU Core
- 256KB Tightly-Coupled Memory (TCM) with 32bit ECC per CPU core cluster
- Lockstep or Dual-core capable clusters
- Trigonometric Math Unit (TMU) for accelerating trigonometric functions
- Up to 4x, one per R5F MCU core
Memory:
- 1x Flash Subsystem with OptiFlash memory technology and eXecute In Place (XIP)...
