LMS485E Datasheet Low Power RS-485 / RS-422 Differential Bus Transceiver

Manufacturer: Texas Instruments

📥 Download Datasheet

General Description

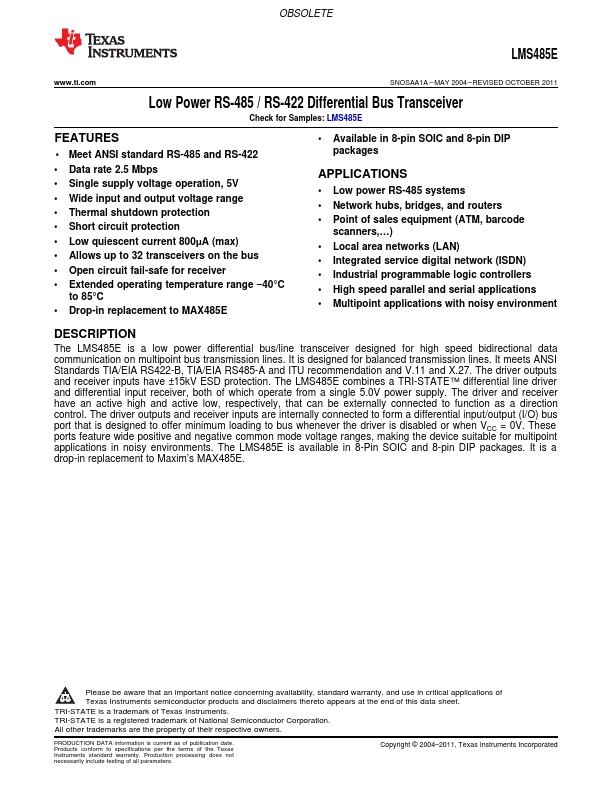

The LMS485E is a low power differential bus/line transceiver designed for high speed bidirectional data communication on multipoint bus transmission lines.

It is designed for balanced transmission lines.

It meets ANSI Standards TIA/EIA RS422-B, TIA/EIA RS485-A and ITU recommendation and V.11 and X.27.

Overview

OBSOLETE LMS485E www.ti.com SNOSAA1A – MAY 2004 – REVISED OCTOBER 2011 Low Power RS-485 / RS-422 Differential Bus Transceiver Check for Samples:.

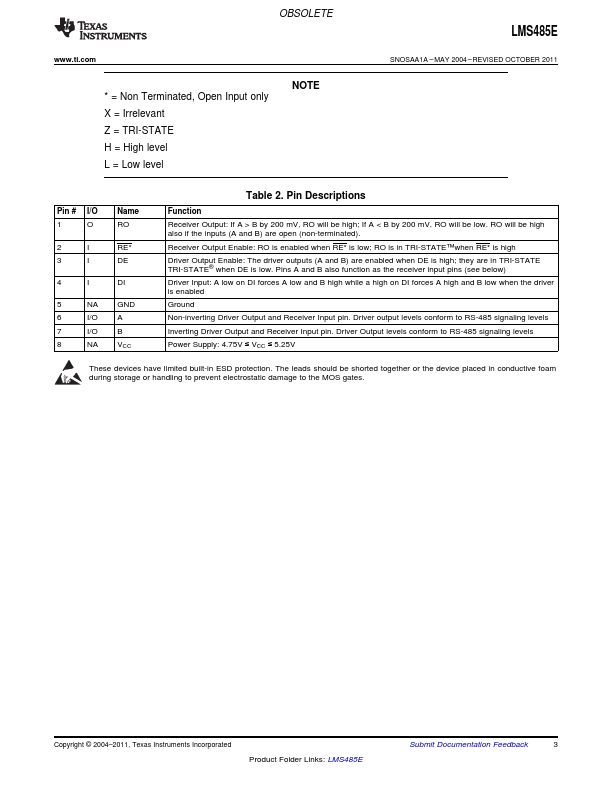

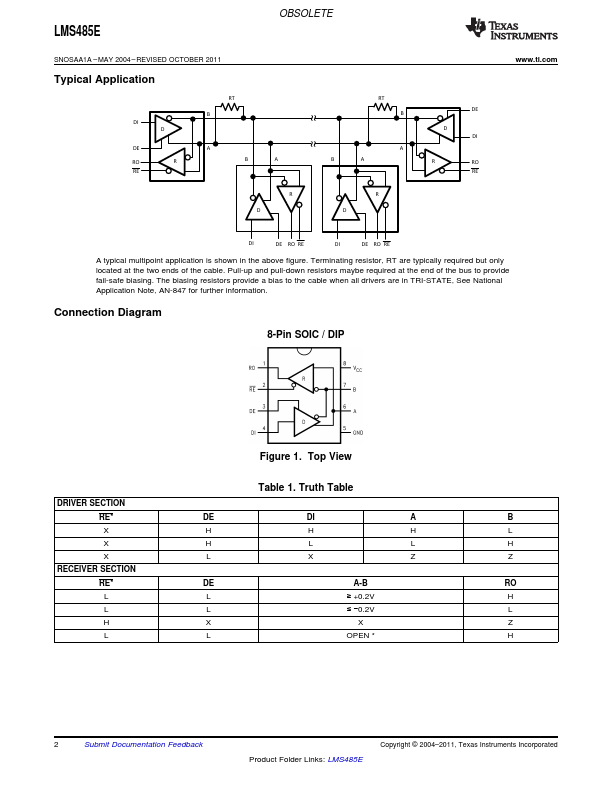

Key Features

  • 1.
  • 234 Meet ANSI standard RS-485 and RS-422.
  • Data rate 2.5 Mbps.
  • Single supply voltage operation, 5V.
  • Wide input and output voltage range.
  • Thermal shutdown protection.
  • Short circuit protection.
  • Low quiescent current 800μA (max).
  • Allows up to 32 transceivers on the bus.
  • Open circuit fail-safe for receiver.
  • Extended operating temperature range.
  • 40°C to 85°C.
  • Drop-in replacement to MAX485E.
