REF5020 Datasheet | Texas Instruments

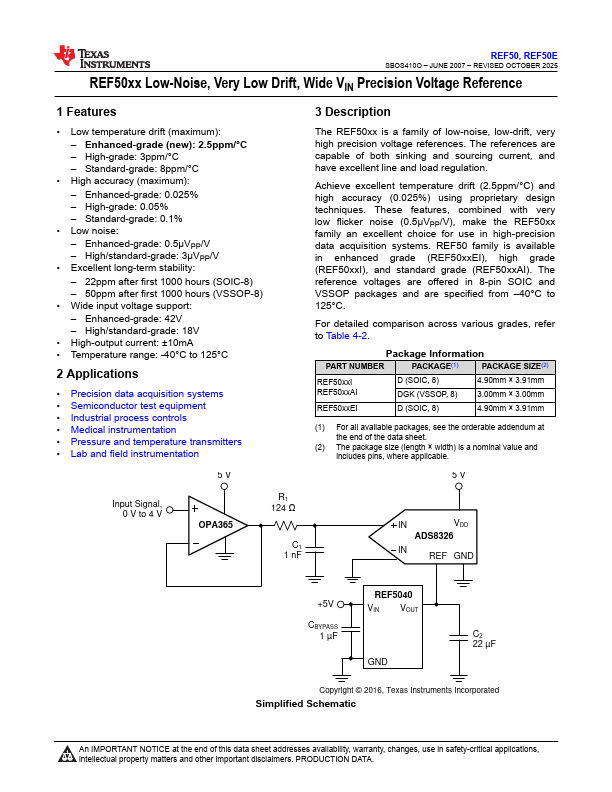

Features - Low temperature drift (maximum): - Enhanced-grade (new): 2.5ppm/°C - High-grade: 3ppm/°C - Standard-grade: 8ppm/°C - High accuracy (maximum): - Enhanced-grade: 0.025% - High-grade: 0.05% - Standard-grade: 0.1% - Low noise: - Enhanced-grade: 0.5μVPP/V - High/standard-grade: 3μVPP/V - Excellent long-term stability: - 22ppm after first 1000 hours (SOIC-8) - 50ppm after first 1000 hours (VSSOP-8) - Wide input voltage support: - Enhanced-grade: 42V - High/standard-grade: 18V - High-output current: ±10m A - Temperature range: -40°C to 125°C 2 Applications - Precision data acquisition systems - Semiconductor test equipment - Industrial process controls - Medical instrumentation - Pressure and temperature transmitters - Lab and field instrumentation 5V 3 Description The REF50xx is a family of low-noise, low-drift, very high precision voltage references. The references are capable of both sinking and sourcing current, and have excellent line and load regulation. Achieve excellent temperature drift (2.5ppm/°C) and high accuracy (0.025%) using proprietary design techniques. These features , bined with very low flicker noise (0.5μVPP/V), make the REF50xx family an excellent choice for use in high-precision data acquisition systems. REF50 family is available in enhanced grade (REF50xx EI), high grade (REF50xx I), and standard grade (REF50xx AI). The reference voltages are offered in 8-pin SOIC and VSSOP packages and are specified from - 40°C to 125°C. For detailed parison across various grades, refer to Table 4-2. Package Information PART NUMBER PACKAGE(1) PACKAGE SIZE(2) REF50xx I REF50xx AI D (SOIC, 8) DGK (VSSOP,...
