REF5025 - Precision Voltage Reference

This page provides the datasheet information for the REF5025, a member of the REF5010 Precision Voltage Reference family.

Description

The REF50xx is a family of low-noise, low-drift, very high precision voltage references.

These references are capable of both sinking and sourcing current, and have excellent line and load regulation.

Features

  • Low temperature drift (maximum):.
  • Enhanced-grade (New): 2.5ppm/°C.
  • High-grade: 3ppm/°C.
  • Standard-grade: 8ppm/°C.
  • High accuracy (maximum):.
  • Enhanced-grade: 0.025%.
  • High-grade: 0.05%.
  • Standard-grade: 0.1%.
  • Low noise:.
  • Enhanced-grade: 0.5μVPP/V.
  • High/Standard-grade: 3μVPP/V.
  • Excellent long-term stability:.
  • 22ppm after first 1000 hours (SOIC-8).
  • 50ppm after first 1000 hours.

📥 Download Datasheet

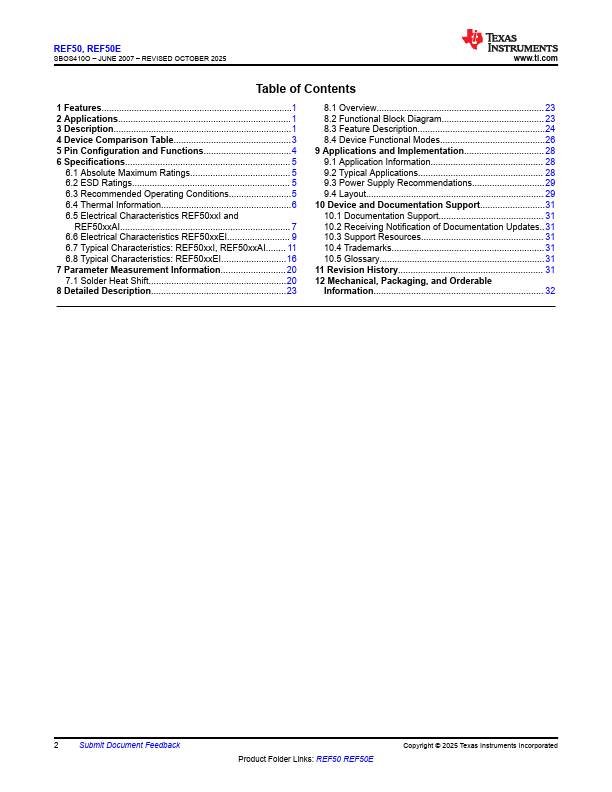

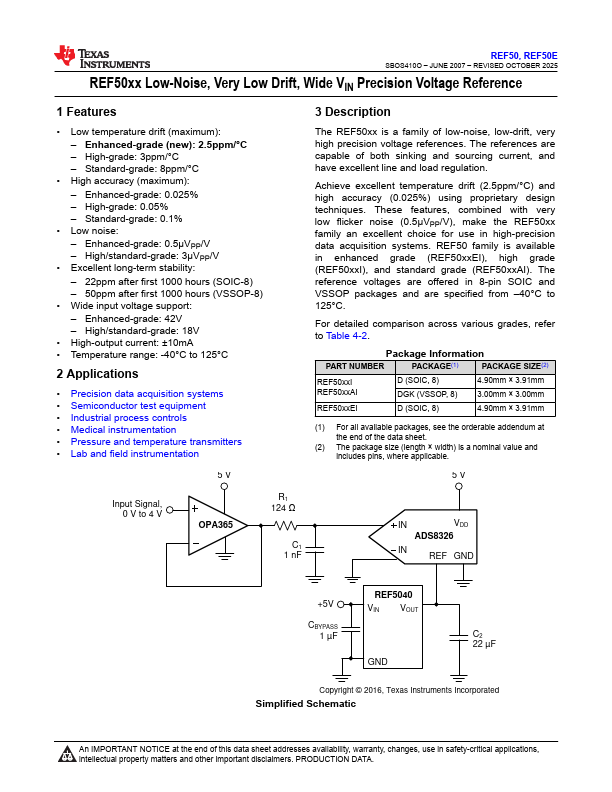

Datasheet preview – REF5025
