SN74AHC240 - Octal Buffers/Drivers

Description

These octal buffers/drivers are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and busoriented receivers and transmitters.

Features

  • Low delay, 4.3ns typ. (25°C, 5V).
  • Latch-up performance exceeds 250mA per JESD 17 2.

📥 Download Datasheet

Datasheet preview – SN74AHC240

Datasheet Details

Part number SN74AHC240
Manufacturer Texas Instruments
File Size 2.60 MB
Description Octal Buffers/Drivers
Datasheet download datasheet SN74AHC240 Datasheet

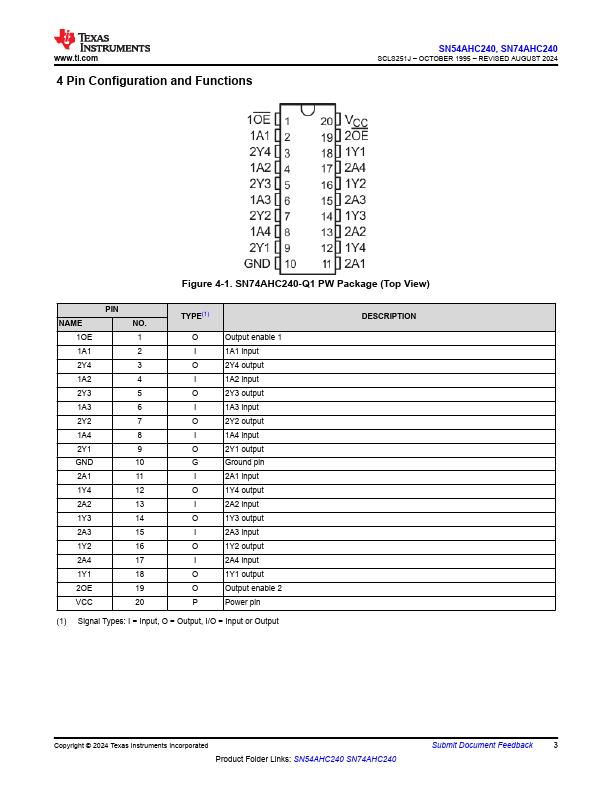

Additional preview pages of the SN74AHC240 datasheet.

📁 Similar Datasheet

  • SN74101 - AND-OR Gate (ETC)
  • SN74102 - AND Gate (ETC)
  • SN74103 - Dual J-K Flip-Flop (ETC)
  • SN74106 - Dual J-K Flip-Flop (ETC)
  • SN74108 - Dual J-K Flip Flop (ETC)
  • SN7411 - Triple 3-Input AND (ETC)
  • SN74120 - Dual Pulse Synchronizers / Drivers (Texas Instruments Inc)
  • SN74124 - Dual Voltage Controlled Oscillators (ETC)
  • SN7415 - Triple 3 Input AND Gate (Motorola)
  • SN74381 - integrated circuits (ETC)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

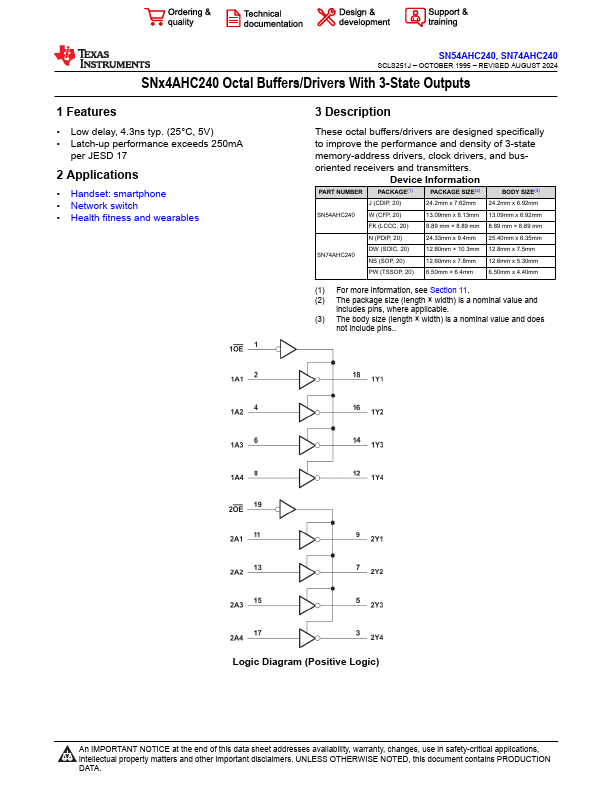

SN54AHC240, SN74AHC240 SCLS251J – OCTOBER 1995 – REVISED AUGUST 2024 SNx4AHC240 Octal Buffers/Drivers With 3-State Outputs 1 Features • Low delay, 4.3ns typ. (25°C, 5V) • Latch-up performance exceeds 250mA per JESD 17 2 Applications • Handset: smartphone • Network switch • Health fitness and wearables 3 Description These octal buffers/drivers are designed specifically to improve the performance and density of 3-state memory-address drivers, clock drivers, and busoriented receivers and transmitters. Device Information PART NUMBER PACKAGE(1) PACKAGE SIZE(2) BODY SIZE(3) J (CDIP, 20) 24.2mm x 7.62mm 24.2mm x 6.92mm SN54AHC240 W (CFP, 20) 13.09mm x 8.13mm 13.09mm x 6.92mm FK (LCCC, 20) 8.89 mm × 8.89 mm 8.89 mm × 8.89 mm N (PDIP, 20) 24.33mm x 9.4mm 25.40mm x 6.
