TPS61253A - 5-V / 4-A Boost Converter

Datasheet Summary

Description

The TPS61253x device provides a power supply solution for battery-powered portable applications.

With the input voltage ranging from 2.3 V to 5.5 V (TPS61253A) or 2.5 V to 5.5 V (TPS61253E), the device supports the applications powered by the Li-Ion batteries with the extended voltage range.

Features

  • Wide input voltage range from 2.3 V to 5.5 V (TPS61253A).
  • Wide input voltage range from 2.5 V to 5.5 V (Startup>2.6V, TPS61253E).
  • Fixed output voltage: 4.5 / 4.7 / 5.0 / 5.2 V / 5.25 V.
  • Two FETs integrated: 35-mΩ LS-FET, 60-mΩ HS- FET.
  • IOUT ≥ 1500-mA continuously at VOUT = 5 V and VIN ≥ 3 V (TPS61253A).
  • IOUT ≥ 1500-mA continuously at VOUT = 5.25 V and VIN ≥ 3 V (TPS61253E).
  • 42-µA quiescent current from input.
  • 4-A switching.

📥 Download Datasheet

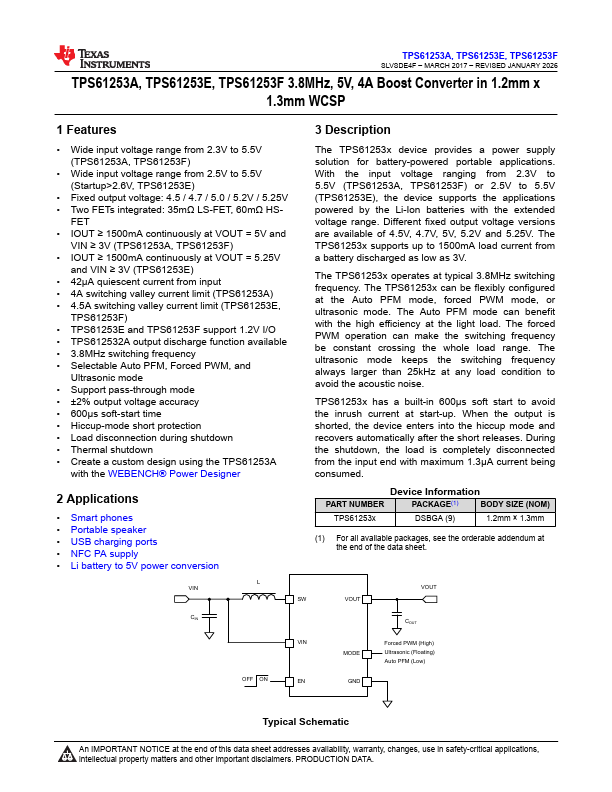

Datasheet preview – TPS61253A

Datasheet Details

Part number TPS61253A
Manufacturer Texas Instruments
File Size 1.89 MB
Description 5-V / 4-A Boost Converter
Datasheet download datasheet TPS61253A Datasheet

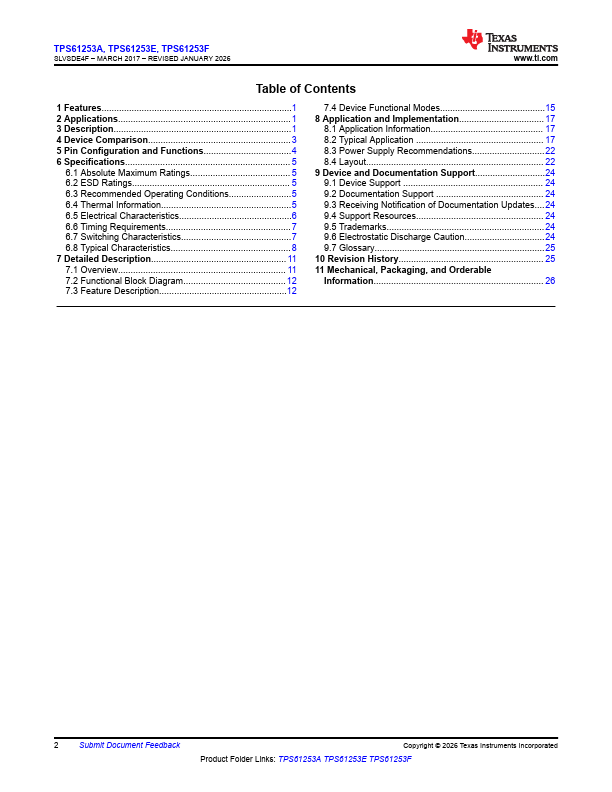

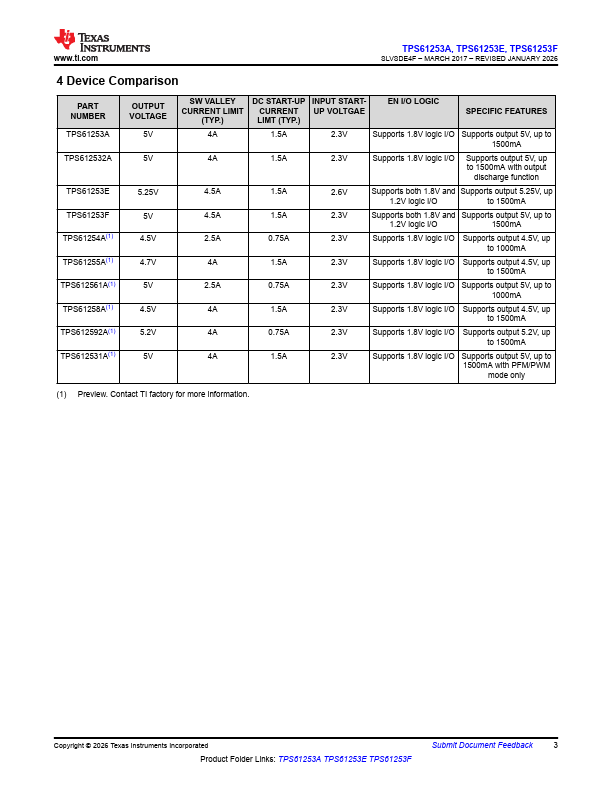

Additional preview pages of the TPS61253A datasheet.

📁 Similar Datasheet

  • TPS612 - PHOTO TRANSISTOR (Toshiba Semiconductor)
  • TPS611 - Phototransistor (Toshiba)
  • TPS611F - Phototransistor (Toshiba)
  • TPS613 - SILICON NPN TRANSISTOR (Toshiba)
  • TPS614 - PHOTO TRANSISTOR (Toshiba Semiconductor)
  • TPS615 - PHOTO TRANSISTOR (Toshiba Semiconductor)
  • TPS616 - PHOTO TRANSISTOR (Toshiba Semiconductor)
  • TPS618 - PHOTO TRANSISTOR (Toshiba Semiconductor)
  • TPS603A - Photo Transistor (Toshiba Semiconductor)
  • TPS604 - POWER SCHOTTKY RECTIFIER (STMicroelectronics)
Other Datasheets by Texas Instruments
  • TPS61253 - 3.5-MHz High Efficiency Step-Up Converter
  • TPS61253E - 5-V / 4-A Boost Converter
  • TPS61251 - Boost Converter
  • TPS61252 - Tiny 1.5-A Boost Converter
  • TPS61254 - 3.5-MHz High Efficiency Step-Up Converter
  • TPS61256 - 3.5-MHz High Efficiency Step-Up Converter
  • TPS61258 - 3.5-MHz High Efficiency Step-Up Converter
  • TPS61259 - 3.5-MHz High Efficiency Step-Up Converter

Full PDF Text Transcription

Click to expand full text
TPS61253A, TPS61253E SLVSDE4E – MARCH 2017 – REVISED JUNE 2023 TPS61253A, TPS61253E 3.8-MHz, 5-V, 4-A Boost Converter in 1.2-mm x 1.3-mm WCSP 1 Features • Wide input voltage range from 2.3 V to 5.5 V (TPS61253A) • Wide input voltage range from 2.5 V to 5.5 V (Startup>2.6V, TPS61253E) • Fixed output voltage: 4.5 / 4.7 / 5.0 / 5.2 V / 5.25 V • Two FETs integrated: 35-mΩ LS-FET, 60-mΩ HS- FET • IOUT ≥ 1500-mA continuously at VOUT = 5 V and VIN ≥ 3 V (TPS61253A) • IOUT ≥ 1500-mA continuously at VOUT = 5.25 V and VIN ≥ 3 V (TPS61253E) • 42-µA quiescent current from input • 4-A switching valley current limit • 3.
