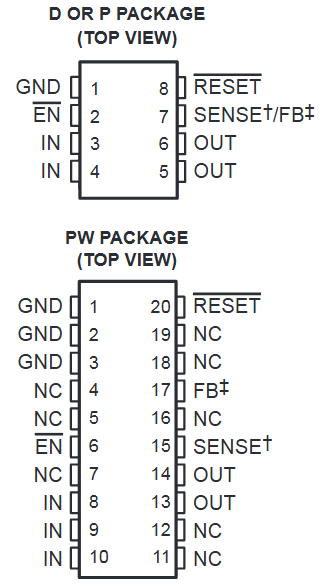

description - No internal connection † SENSE - Fixed voltage options only The TPS73xx devices are members of a family of micropower low-dropout (LDO) voltage regulators. (TPS7325, TPS7330, TPS7333, TPS7348, and TPS7350) ‡ FB - Adjustable version only (TPS7301) They are differentiated from the TPS71xx and TPS72xx LDOs by their integrated delayed microprocessor-reset function. If the precision delayed reset is not required, the TPS71xx and TPS72xx should be considered.¶ AVAILABLE OPTIONS OUTPUT VOLTAGE (V) NEGATIVE-GOING RESET THRESHOLD VOLTAGE (V) PACKAGED DEVICES MIN TYP MAX SMALL OUTLINE (D) PLASTIC DIP (P) TSSOP (PW) CHIP FORM (Y) 4.9 5 5.1 4.55 4.65 4.75 TPS7350QD TPS7350QP TPS7350QPW TPS7350Y 4.75 4.85 4.95 4.5 4.6 4.7 TPS7348QD TPS7348QP TPS7348QPW TPS7348Y - 40°C to 125°C 3.23 2.94 2.425 3.3 3.37 3 3.06 2.5 2.575 2.868 2.58 2.23 2.934 2.64 2.32 3 TPS7333QD 2.7 TPS7330QD 2.39 TPS7325QD TPS7333QP TPS7330QP TPS7325QP TPS7333QPW TPS7330QPW TPS7325QPW TPS7333Y TPS7330Y TPS7325Y Adjustable 1.2 V to 9.75 V 1.101 1.123 1.145 TPS7301QD TPS7301QP TPS7301QPW TPS7301Y The D and PW packages are available taped and reeled. Add an R suffix to device type (e.g., TPS7350QDR). The TPS7301Q is programmable using an external resistor divider (see application information). The chip form is tested at 25°C. - The TPS7325 has a tolerance of ± 3% over the full temperature range. ¶ The TPS71xx and the TPS72xx are 500-m A and 250-m A output regulators respectively, offering performance similar to that of the TPS73xx but without the delayed-reset function. The TPS72xx devices are further differentiated by availability in 8-pin thin-shrink small-outline packages (TSSOP) for applications requiring minimum package size. Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears...
