TPS7333Q - LOW-DROPOUT VOLTAGE REGULATORS

Download the TPS7333Q datasheet PDF. This datasheet also covers the TPS7301Q variant, as both devices belong to the same low-dropout voltage regulators family and are provided as variant models within a single manufacturer datasheet.

Description

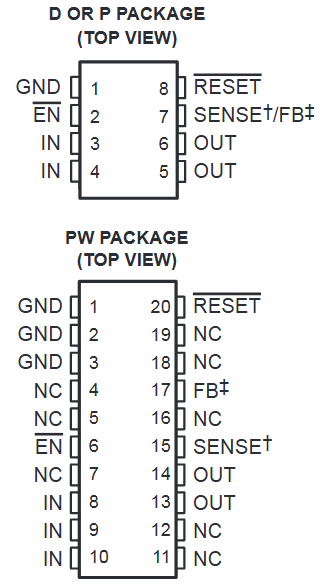

NC No internal connection † SENSE

The TPS73xx devices are members of a family of micropower low-dropout (LDO) voltage regulators.

Adjustable version only (TPS7301) They are differentia

Features

  • a sleep mode; applying a logic high signal to EN (enable) shuts.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TPS7301Q-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
TPS73012 300mA Fast Transient CMOS LDO Regulator HTC
TPS73015 300mA Fast Transient CMOS LDO Regulator HTC
TPS73018 300mA Fast Transient CMOS LDO Regulator HTC
TPS73025 300mA Fast Transient CMOS LDO Regulator HTC
TPS73028 300mA Fast Transient CMOS LDO Regulator HTC

Other Datasheets by Texas Instruments

Part Number Description
TPS7330Q LOW-DROPOUT VOLTAGE REGULATORS
TPS730 200-mA Low-Dropout Linear Regulators
TPS73001 200-mA Low-Dropout Linear Regulators
TPS73018 200-mA Low-Dropout Linear Regulators
TPS7301Q LOW-DROPOUT VOLTAGE REGULATORS

Full PDF Text Transcription

Click to expand full text
TPS7301Q, TPS7325Q, TPS7330Q, TPS7333Q, TPS7348Q, TPS7350Q LOW-DROPOUT VOLTAGE REGULATORS WITH INTEGRATED DELAYED RESET FUNCTION SLVS124F – JUNE 1995 – REVISED JANUARY 1999 D Available in 2.5-V, 3-V, 3.3-V, 4.85-V, and 5-V Fixed-Output and Adjustable Versions D Integrated Precision Supply-Voltage Supervisor Monitoring Regulator Output Voltage D Active-Low Reset Signal with 200-ms Pulse Width D Very Low Dropout Voltage . . . Maximum of 35 mV at IO = 100 mA (TPS7350) D Low Quiescent Current – Independent of Load . . . 340 µA Typ D Extremely Low Sleep-State Current, 0.
