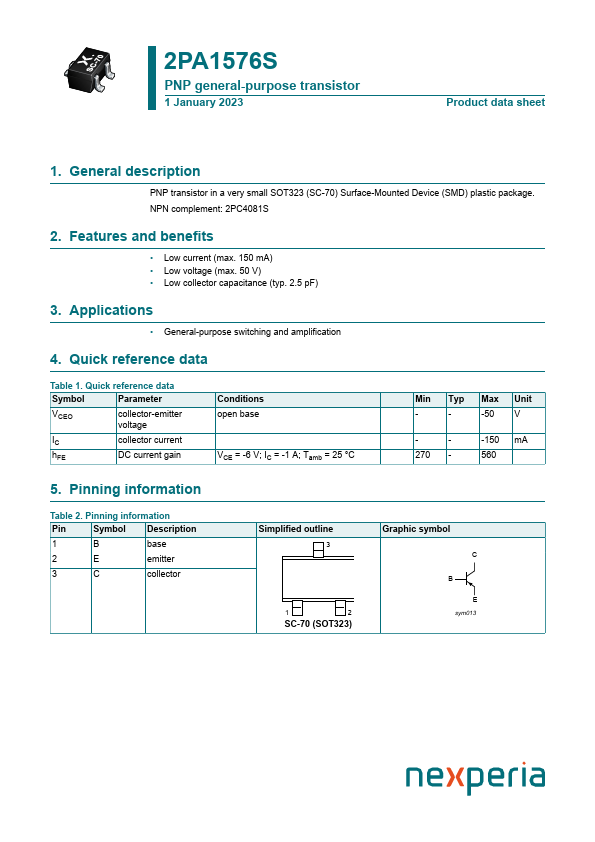

2PA1576S
2PA1576S is PNP general-purpose transistor manufactured by Nexperia.
description
PNP transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. NPN plement: 2PC4081S
2. Features and benefits
- Low current (max. 150 m A)
- Low voltage (max. 50 V)
- Low collector capacitance (typ. 2.5 p F)
3. Applications
- General-purpose switching and amplification
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = -6 V; IC = -1 A; Tamb = 25 °C
Min Typ Max Unit
- -
-50 V
- -
- -150 m A 560
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
B base
E emitter
C collector
Simplified outline
SC-70 (SOT323)
Graphic...
