2PB1219AS - PNP general purpose transistor

General Description

PNP transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

2.

Key Features

  • High current (max. 500 mA).
  • Low voltage (max. 50 V).
  • Low collector-emitter saturation voltage (max. 600 mV).
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number 2PB1219AS
Manufacturer Nexperia
File Size 188.20 KB
Description PNP general purpose transistor
Datasheet download datasheet 2PB1219AS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2PB1219AS PNP general purpose transistor NXP
2PB1219A PNP general purpose transistor NXP
2PB1219A PNP General Purpose Transistor Kexin
2PB1219AQ PNP general purpose transistor NXP
2PB1219AR PNP general purpose transistor NXP

Other Datasheets by Nexperia

Part Number Description
2PB1219AR PNP general purpose transistor
2PB709ARL PNP general-purpose transistors
2PB709ART 45V 100mA PNP general-purpose transistor
2PB709ASL PNP general-purpose transistors
2PB709BRL PNP general-purpose transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

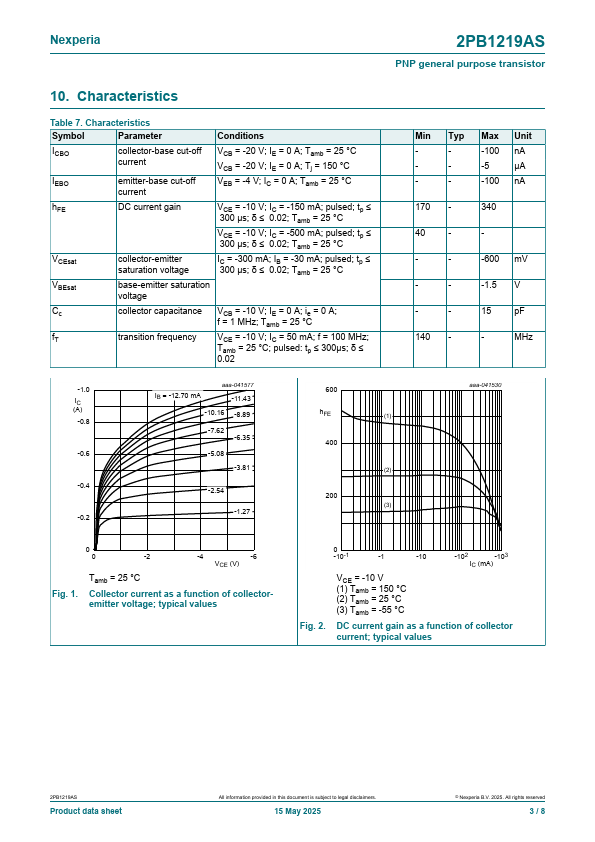

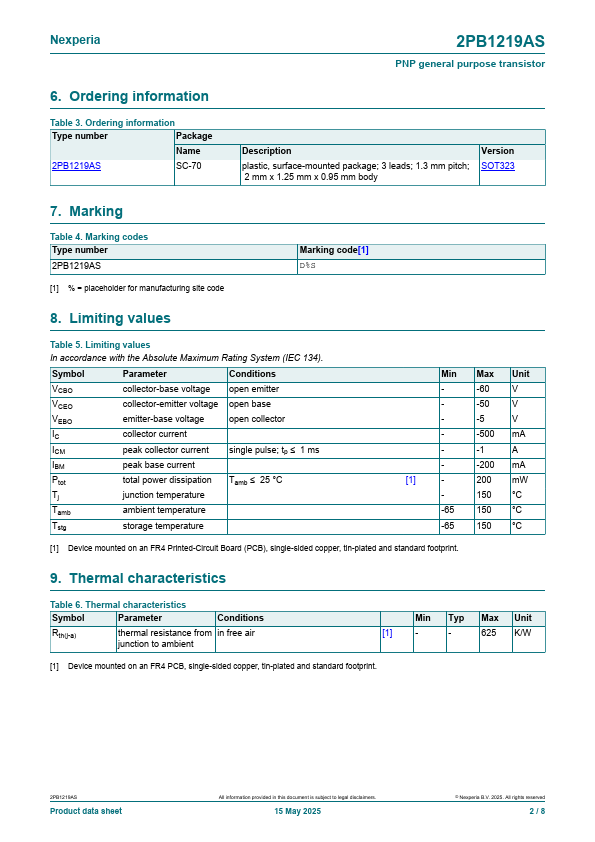

2PB1219AS PNP general purpose transistor 15 May 2025 Product data sheet 1. General description PNP transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High current (max. 500 mA) • Low voltage (max. 50 V) • Low collector-emitter saturation voltage (max. 600 mV) • AEC-Q101 qualified 3. Applications • General purpose switching and amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCEO collector-emitter voltage IC collector current hFE DC current gain Conditions open base VCE = -10 V; IC = -150 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C Min Typ Max Unit - - -50 V - - 170 - -500 mA 340 5. Pinning information Table 2.
