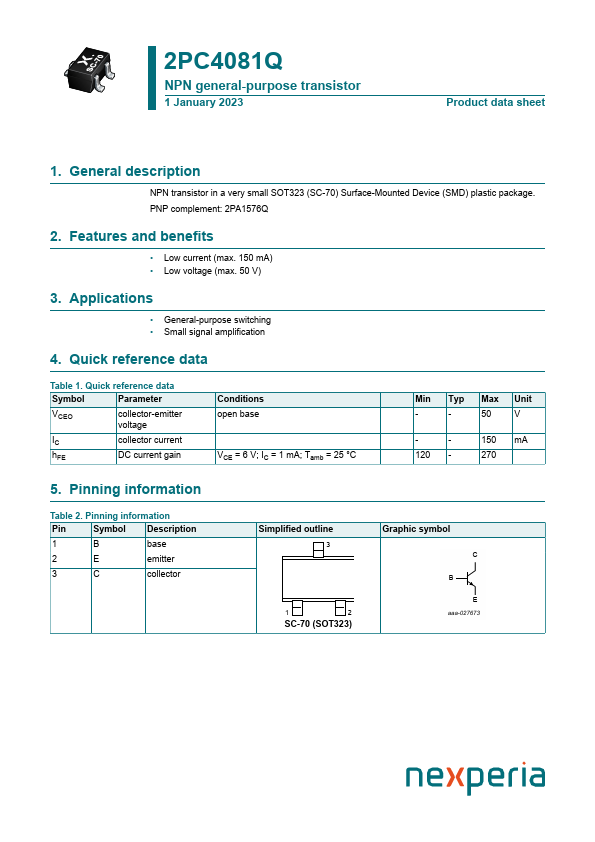

2PC4081Q
2PC4081Q is NPN general-purpose transistor manufactured by Nexperia.
description
NPN transistor in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. PNP plement: 2PA1576Q
2. Features and benefits
- Low current (max. 150 m A)
- Low voltage (max. 50 V)
3. Applications
- General-purpose switching
- Small signal amplification
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
VCEO collector-emitter voltage
IC collector current h FE
DC current gain
Conditions open base
VCE = 6 V; IC = 1 m A; Tamb = 25 °C
Min Typ Max Unit
- -
- -
- 150 m A 270
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
B base
E emitter
C collector
Simplified outline
SC-70 (SOT323)
Graphic...
