BAS28 Datasheet PDF

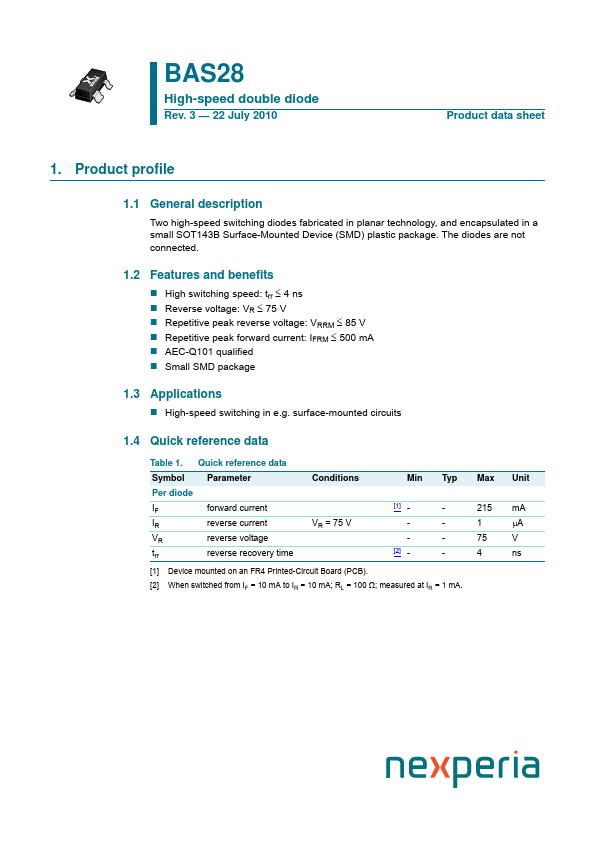

FEATURES AND BENEFITS

„ High switching speed: trr ≤ 4 ns „ Reverse voltage: VR ≤ 75 V „ Repetitive peak reverse voltage: VRRM ≤ 85 V „ Repetitive peak forward current: IFRM ≤ 500 mA „ AEC-Q101 qualified „ Small SMD package 1.3

APPLICATIONS

„ High-speed switching in e.g. surface-mounted circuits 1.4 Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Per diode IF IR VR trr forward current reverse current reverse voltage reverse recovery time VR = 75 V [1] - - - - - - [2] - - [1] Device mounted on an FR4 Printed-Circuit Board (PCB). [2] When switched from IF = 10 mA to IR =10 mA; RL = 100 Ω; measured at IR = 1 mA. Max 215 1 75 4 Unit mA μA V ns Nexperia BAS28 High-speed double diode 2. Pinning information Table 2. Pin 1 2 3 4 Pinning

DESCRIPTION

cathode (diode 1) cathode (diode 2) anode (diode 2) anode (diode 1) Simplified outline Graphic symbol 4 3 4 3 1 2 1 2 006aab100 3. Ordering information Table 3. Ordering information Type number Package Name

DESCRIPTION

BAS28 - plastic surface-mounted package; 4 leads 4.
