BAS40-06W
BAS40-06W is General-purpose dual Schottky diode manufactured by Nexperia.
description
General-purpose dual Schottky diode in a small SOT323 Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High switching speed
- Low leakage current
- High breakdown voltage
- Low capacitance
3. Applications
- Ultra high-speed switching
- Voltage clamping
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
IF forward current
VF forward voltage
VR reverse voltage
Conditions
IF = 1 m A; tp ≤ 300 µs; δ ≤ 0.02; pulsed; Tamb = 25 °C Tj = 25 °C
Min Typ Max Unit
- -
120 m A
- -
380 m V
- -

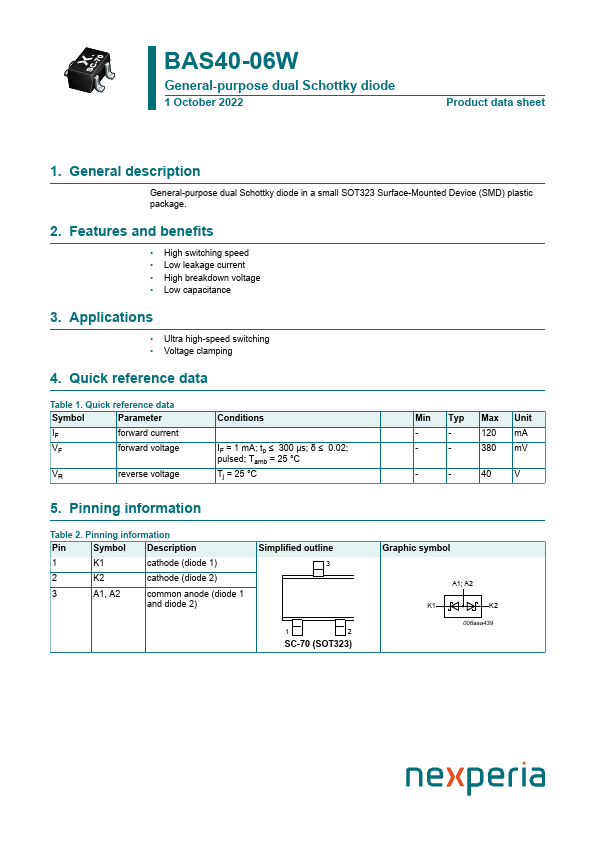

5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
K1 cathode (diode 1)
K2 cathode (diode 2)
A1, A2 mon anode (diode 1 and diode 2)
Simplified...
