BAS521 - Single high-voltage switching diode

General Description

Single high-voltage switching diode, fabricated in planar technology, and encapsulated in a SOD523 (SC-79) ultra small Surface-Mounted Device (SMD) plastic package.

2.

Key Features

  • High switching speed: trr ≤ 50 ns.
  • High reverse voltage: VR ≤ 300 V.
  • Repetitive peak forward current: IFRM ≤ 1 A.
  • Ultra small SMD plastic package.
  • AEC-Q101 qualified 3.

📥 Download Datasheet

Datasheet Details

Part number BAS521
Manufacturer Nexperia
File Size 183.89 KB
Description Single high-voltage switching diode
Datasheet download datasheet BAS521 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAS521 High voltage switching diode NXP Semiconductors
BAS521 HIGH VOLTAGE SWITCHING DIODE Diodes
BAS521 High voltage switching diode LGE
BAS521 HIGH VOLTAGE SWITCHING DIODE CDIL
BAS521 Switching Diodes Kexin

Other Datasheets by Nexperia

Part Number Description
BAS521-Q High-voltage switching diode
BAS521B High-voltage switching diode
BAS516 High-speed switching diode
BAS116 Low-leakage diode
BAS116-Q Low-leakage diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

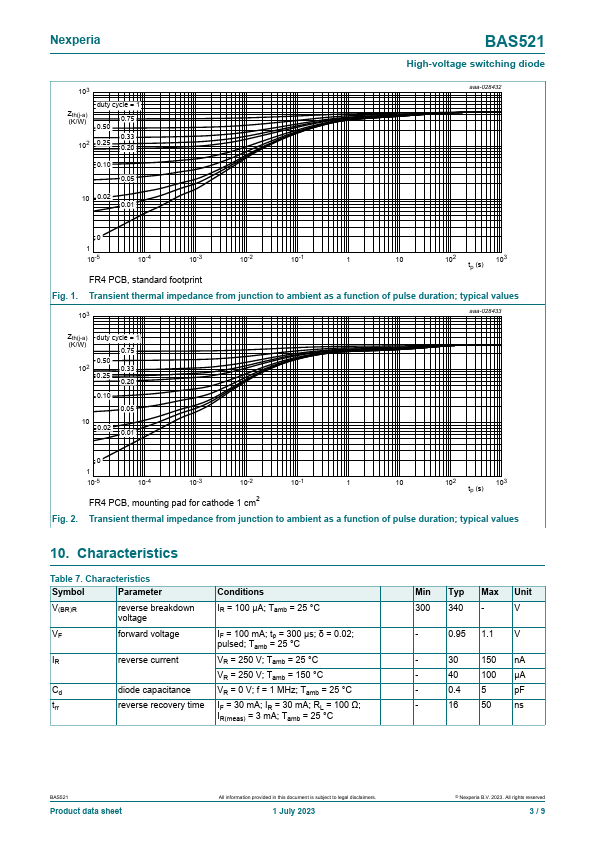

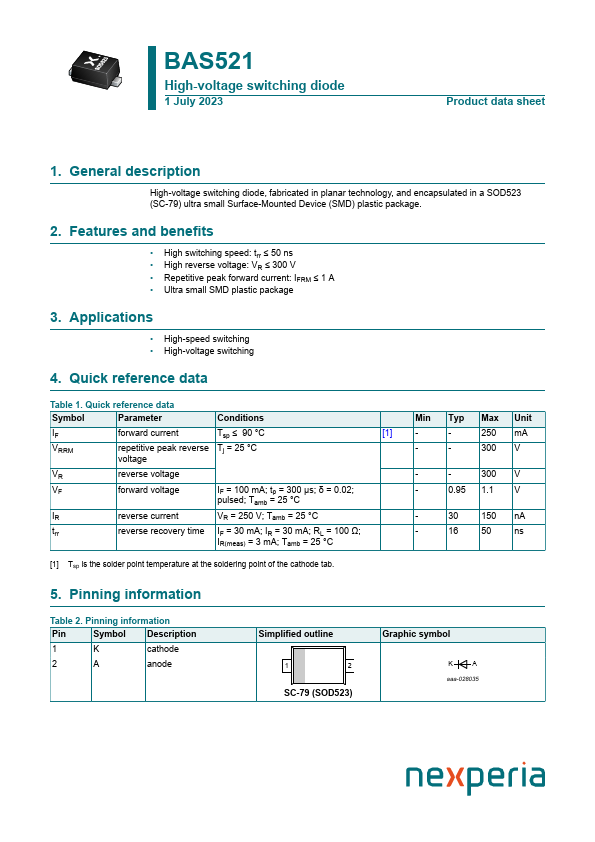

BAS521 Single high-voltage switching diode 29 June 2018 Product data sheet 1. General description Single high-voltage switching diode, fabricated in planar technology, and encapsulated in a SOD523 (SC-79) ultra small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High switching speed: trr ≤ 50 ns • High reverse voltage: VR ≤ 300 V • Repetitive peak forward current: IFRM ≤ 1 A • Ultra small SMD plastic package • AEC-Q101 qualified 3. Applications • High-speed switching • High-voltage switching 4. Quick reference data Table 1.
