BAT54W
BAT54W is Schottky barrier diode manufactured by Nexperia.
Schottky barrier diode
1 October 2022
Product data sheet
1. General description
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Low forward voltage
- Low capacitance
3. Applications
- Ultra high-speed switching
- Line termination
- Voltage clamping
- Reverse polarity protection

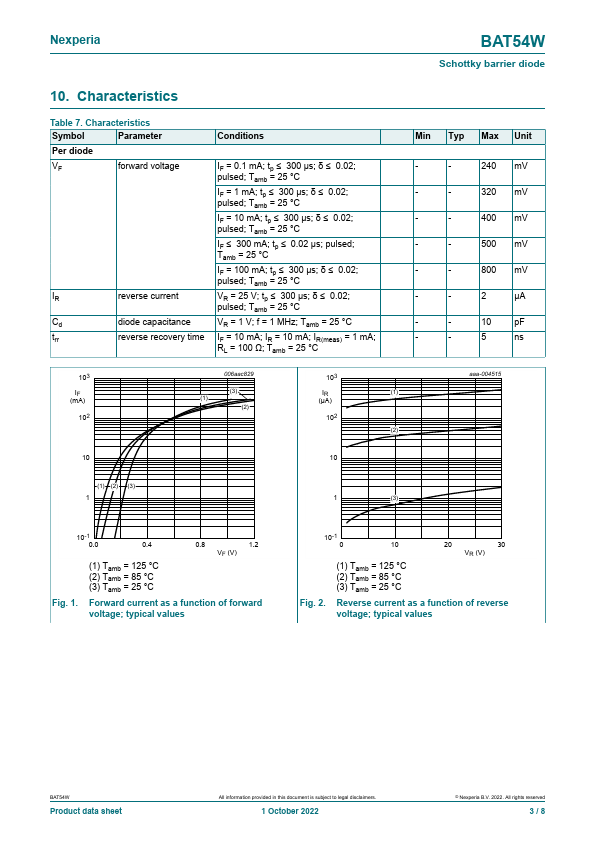

4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per diode
VR reverse voltage
VF forward voltage
IR reverse current
Conditions
IF = 100 mA; tp ≤ 300 µs; δ ≤ 0.02; pulsed; Tamb = 25 °C VR = 25 V; tp ≤ 300 µs; δ ≤ 0.02;...
