BAT54W Datasheet | PanJit Semiconductor

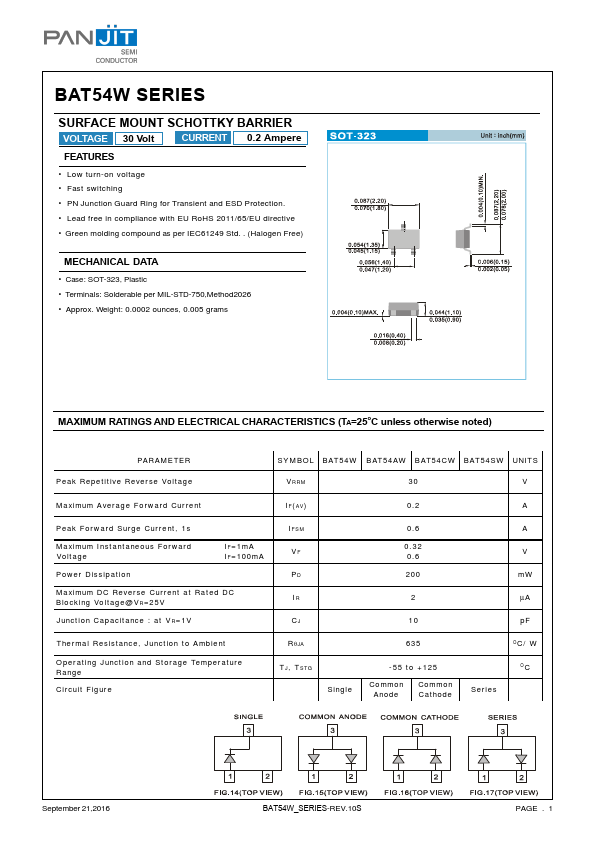

BAT54W SERIES SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 30 Volt CURRENT 0.2 Ampere Features - Low turn-on voltage - Fast switching - PN Junction Guard Ring for Transient and ESD Protection. - Lead free in pliance with EU RoHS 2011/65/EU directive - Green molding pound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA - Case: SOT-323, Plastic - Terminals: Solderable per MIL-STD-750,Method2026 - Approx. Weight: 0.0002 ounces, 0.005 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25oC unless otherwise noted) PA R A M E T E R Peak Repetitive Reverse Voltage SY MBOL BAT54W BAT54AW BAT54CW BAT54SW UNITS VRRM Maximum Average Forward Current I F(...
