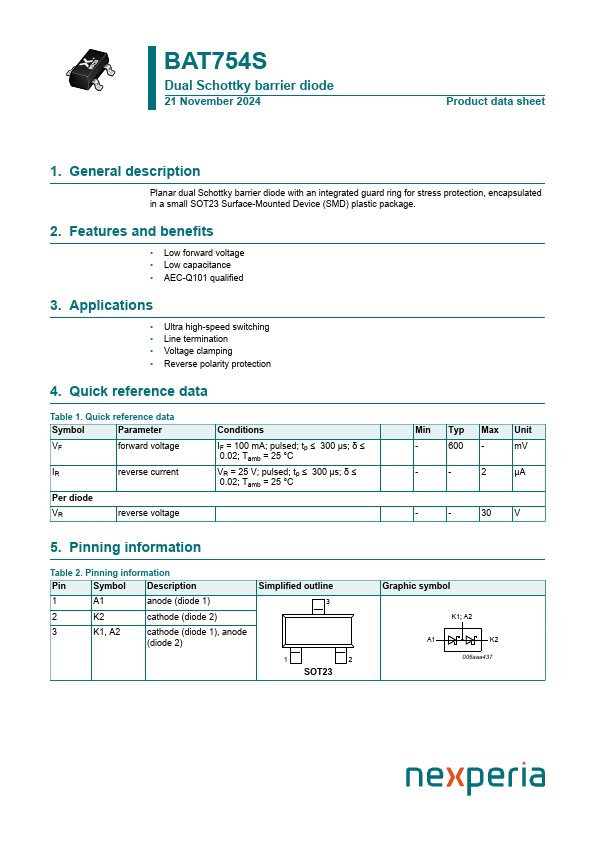

Nexperia BAT754S
This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors, and is suitable for use in automotive applications.| Part No. | BAT754S |
|---|---|
| Datasheet | BAT754S Download |
| Manufacturer |  Nexperia |
| Description | Dual Schottky barrier diode |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Low forward voltage● Low capacitance
● AEC-Q101 qualified 3.
APPLICATIONS
● Ultra high-speed switching● Line termination
● Voltage clamping

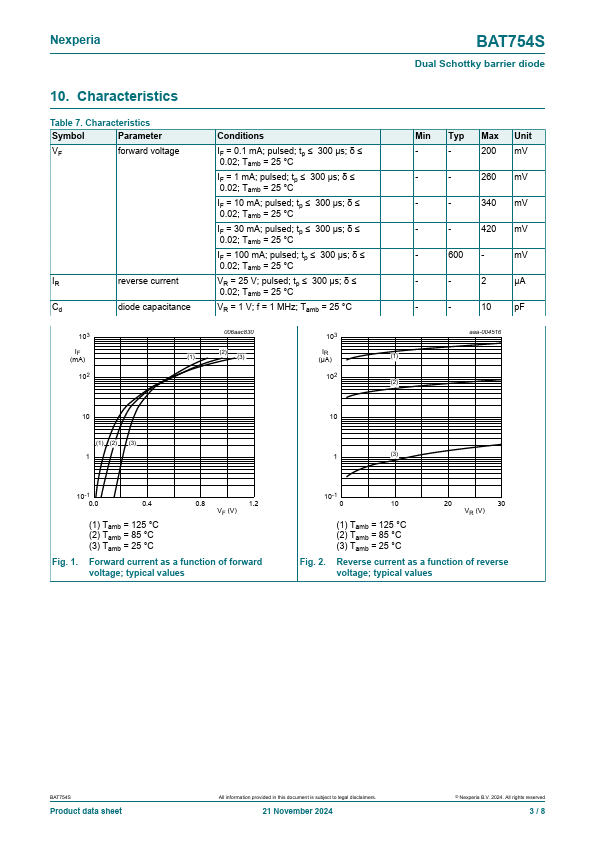

● Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage IR reverse current Per diode VR reverse voltage Conditions IF = 100 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C VR = 25 V; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C Min Typ Max Unit - 600 - mV - - 2 µA - - 30 V 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION

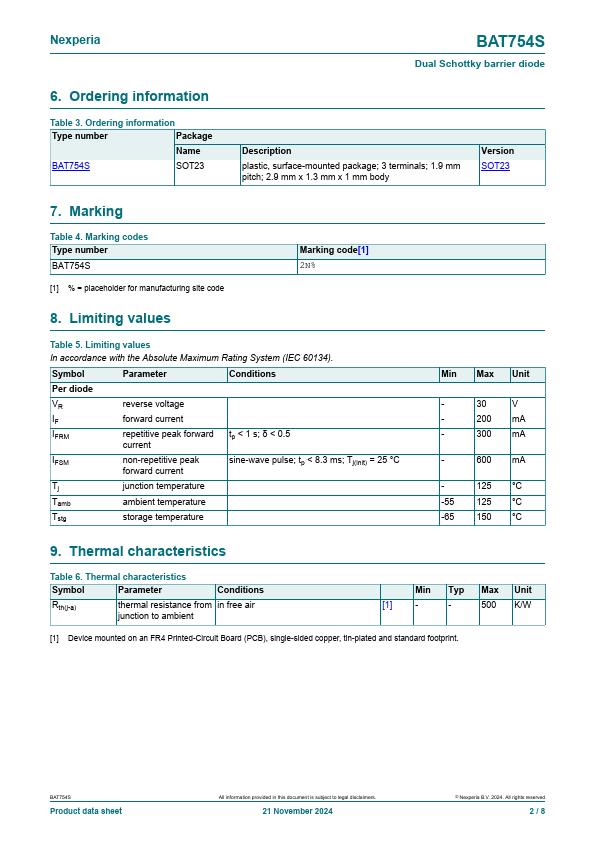

1 A1 anode (diode 1) 2 K2 cathode (diode 2) 3 K1, A2 cathode (diode 1), anode (diode 2) Simplified outline 3 1 2 SOT23 Graphic symbol K1; A2 A1 K2 006aaa437 Nexperia BAT754S Dual Schottky barrier diode 6. Ordering information Table 3. Ordering information Type number Package Name BAT754S SOT23DESCRIPTION
plastic, surface-mounted package; 3 terminals; 1.9 mm pitch; 2.9 mm x 1.3 mm x 1 mm body Version SOT23 7. Marking Table 4.
