| Part number | BAV23A |
|---|---|
| Datasheet | BAV23A-nexperia.pdf |
| File Size | 564.67 KB |
| Manufacturer | Nexperia |
| Description | Dual high-voltage switching diodes |
|
|

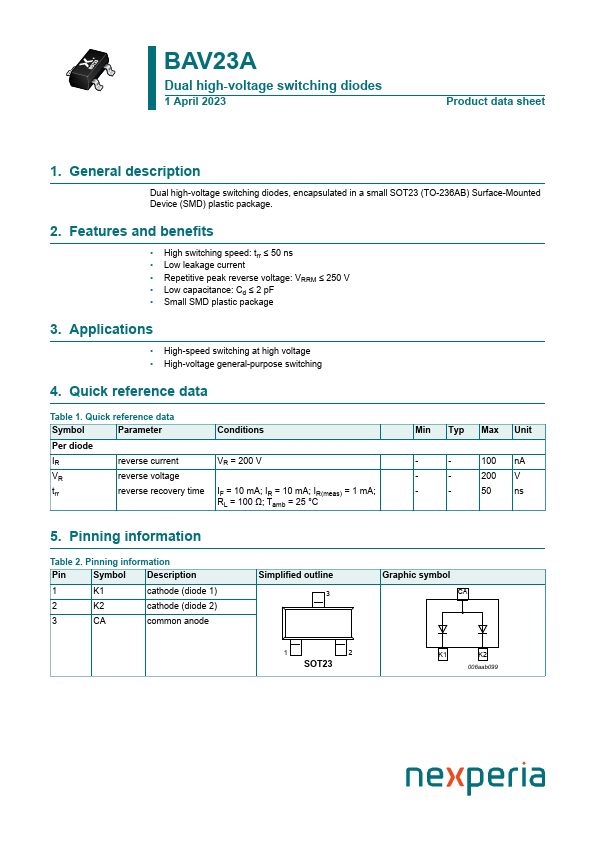

Dual high-voltage switching diodes, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
BAV23A | HIGH CONDUCTANCE ULTRA FAST DIODE | UTC |
 |
BAV23A | Dual Switching Diode | Yangzhou Yangjie |
 |
BAV23A | Switching Diodes | Kexin |
 |
BAV23A | SMD Switching Diode | Formosa MS |
 |
BAV23A | 350mW Small Signal Diode | MCC |
| Part Number | Description |
|---|---|
| BAV23A-Q | Dual high-voltage switching diodes |
| BAV23 | Dual high-voltage switching diodes |
| BAV23C | Dual high-voltage switching diodes |
| BAV23QA | Dual common cathode high-voltage switching diode |
| BAV23S | Dual high-voltage switching diodes |
| BAV102 | Single general-purpose switching diodes |
| BAV103 | Single general-purpose switching diodes |
| BAV170 | Low-leakage double diode |
| BAV170-Q | Low-leakage double diode |
| BAV170M | Dual common cathode low-leakage diode |
