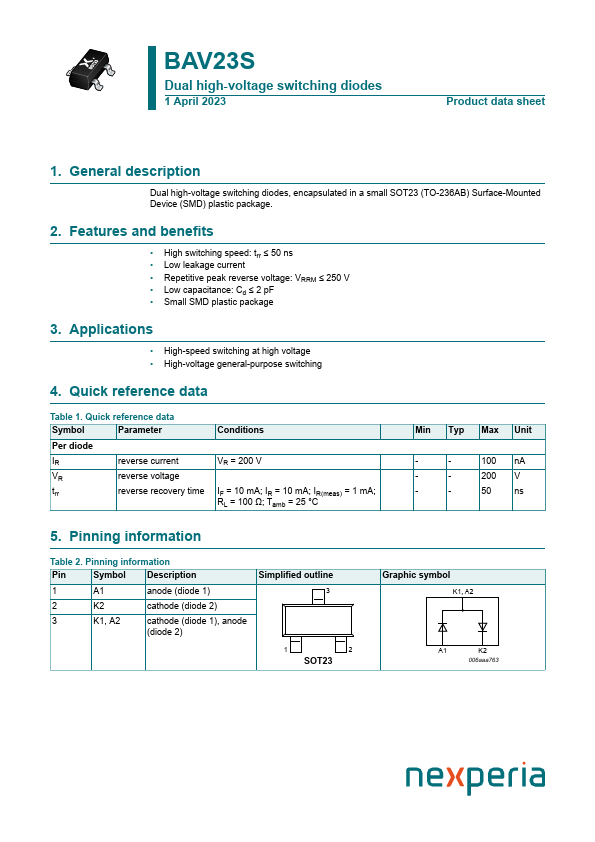

BAV23S
BAV23S is Dual high-voltage switching diodes manufactured by Nexperia.
description
Dual high-voltage switching diodes, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High switching speed: trr ≤ 50 ns
- Low leakage current
- Repetitive peak reverse voltage: VRRM ≤ 250 V
- Low capacitance: Cd ≤ 2 p F
- Small SMD plastic package
3. Applications
- High-speed switching at high voltage
- High-voltage general-purpose switching
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per diode
IR reverse current
VR reverse voltage trr reverse recovery time
Conditions
VR = 200 V
IF = 10 m A; IR = 10 m A; IR(meas) = 1 m A; RL = 100 Ω; Tamb = 25 °C
Min Typ Max Unit
- -
100 n A
- -
200 V
- -
50 ns
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
A1 anode (diode 1)
K2 cathode (diode 2)
K1, A2 cathode (diode 1), anode
(diode 2)
Simplified...
