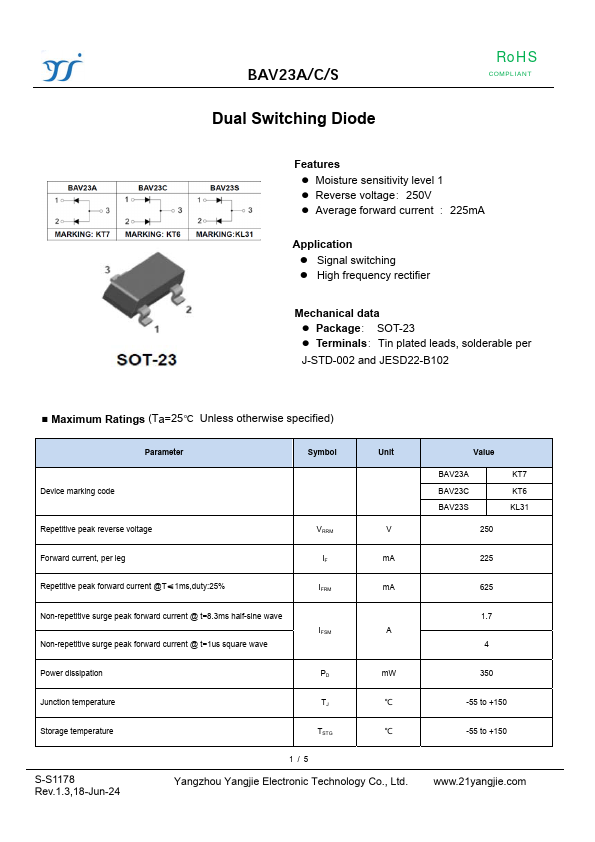

BAV23S
BAV23S is Dual Switching Diode manufactured by Yangjie Electronic.
- Part of the BAV23A comparator family.
- Part of the BAV23A comparator family.
Features
- Moisture sensitivity level 1
- Reverse voltage：250V
- Average forward current ：225m A
Application
- Signal switching
- High frequency rectifier
Mechanical data
- Package： SOT-23
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Parameter
Symbol
Unit
Device marking code
Repetitive peak reverse voltage
VRRM
Forward current, per leg
IF m A
Repetitive peak forward current @T≤1ms,duty:25%
IFRM m A
Non-repetitive surge peak forward current @ t=8.3ms half-sine wave
IFSM
Non-repetitive surge peak forward current @ t=1us square wave
Power dissipation
PD m W
Junction temperature
℃
Storage temperature
S-S1178 Rev.1.3,18-Jun-24
TSTG
℃
1/5
Yangzhou Yangjie Electronic Technology Co., Ltd.
Value
BAV23A BAV23C BAV23S
KT7 KT6...
