Nexperia BCP69
20V 2A PNP medium power transistors
| Part No. | BCP69 |
|---|---|
| Datasheet | BCP69 Download |
| Manufacturer |  Nexperia |
| Description | 20V 2A PNP medium power transistors |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● High current● Three current gain selections
● High power dissipation capability
● AEC-Q101 qualified 3.
APPLICATIONS
● Linear voltage regulators● High-side switches
● Battery-driven devices
● Power management
● MOSFET drivers

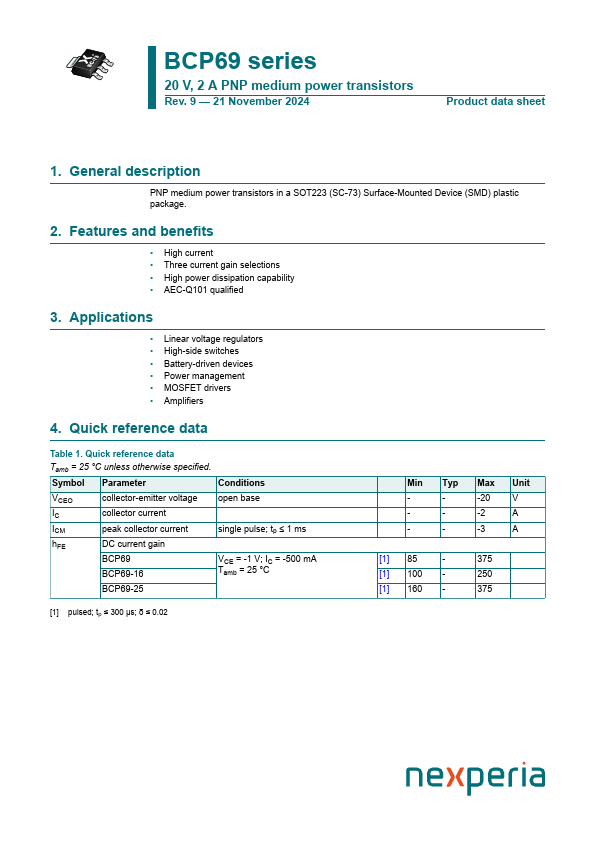

● Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO collector-emitter voltage open base IC collector current ICM peak collector current single pulse; tp ≤ 1 ms hFE DC current gain BCP69 BCP69-16 VCE = -1 V; IC = -500 mA Tamb = 25 °C BCP69-25 [1] pulsed; tp ≤ 300 μs; δ ≤ 0.02 Min Typ Max Unit - - -20 V - - -2 A - - -3 A [1] 85 - 375 [1] 100 - 250 [1] 160 - 375 Nexperia 5. Pinning information Table 2. Pinning Pin 1 2 3 4 Symbol B C E C
DESCRIPTION

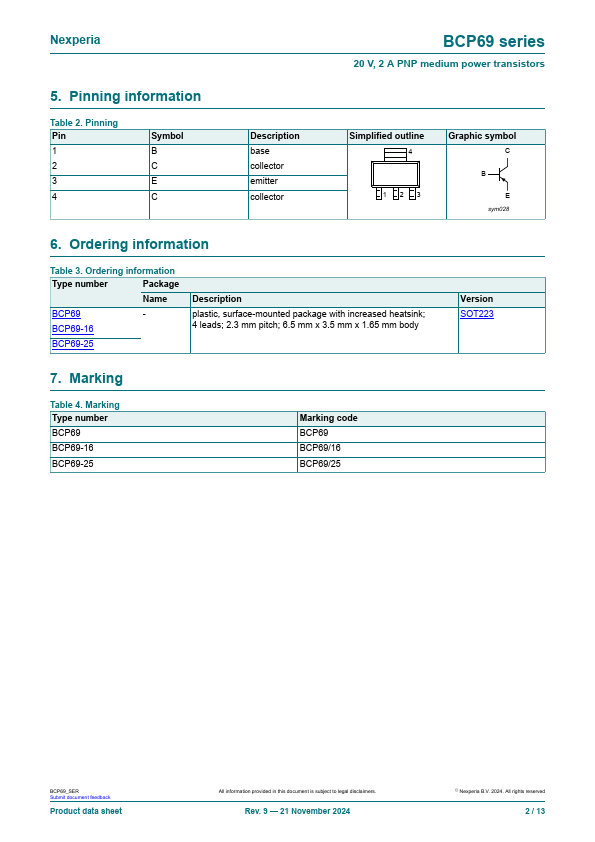

base collector emitter collector BCP69 series 20 V, 2 A PNP medium power transistors Simplified outline 4 123 Graphic symbol C B E sym028 6. Ordering information Table 3. Ordering information Type number Packa...
