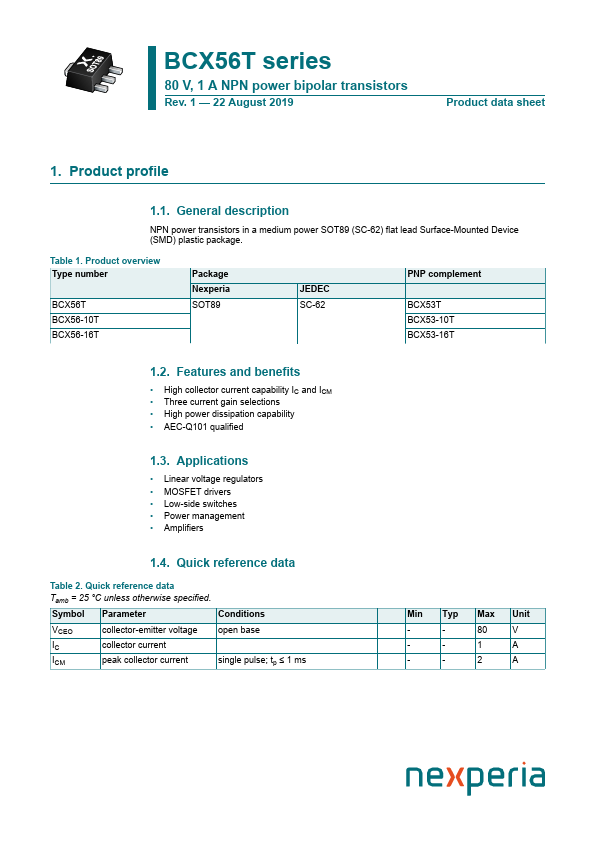

BCX56-10T
description
NPN power transistors in a medium power SOT89 (SC-62) flat lead Surface-Mounted Device (SMD) plastic package.
Table 1. Product overview
Type number
BCX56T BCX56-10T BCX56-16T
Package Nexperia SOT89
JEDEC SC-62
PNP plement
BCX53T BCX53-10T BCX53-16T
1.2. Features and benefits
- High collector current capability IC and ICM
- Three current gain selections
- High power dissipation capability
- AEC-Q101 qualified
1.3. Applications
- Linear voltage regulators
- MOSFET drivers
- Low-side switches
- Power management
- Amplifiers
1.4. Quick reference data
Table 2. Quick reference data Tamb = 25 °C unless otherwise specified.
Symbol Parameter
Conditions
VCEO collector-emitter voltage open base
IC collector current
ICM peak collector current single pulse; tp ≤ 1 ms
Min Typ Max Unit
- -
- -
- -
Nexperia

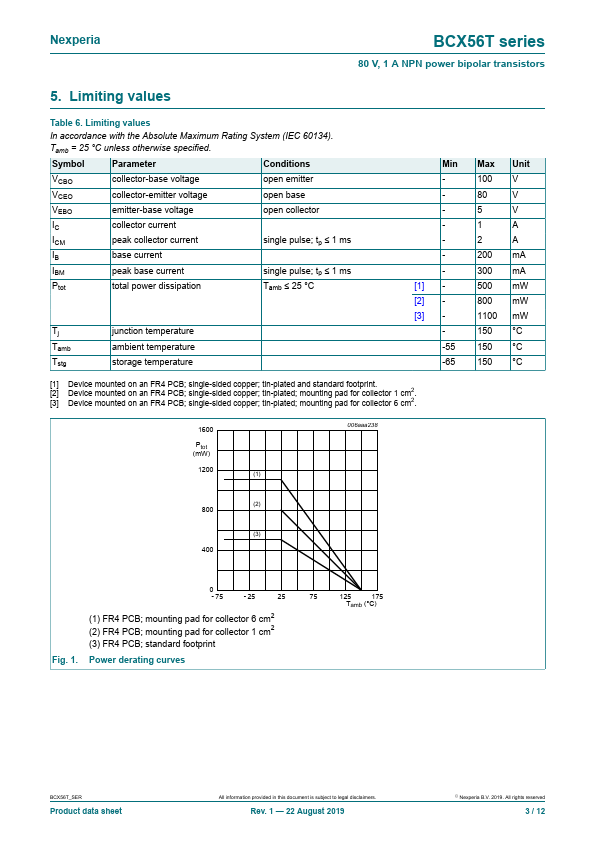

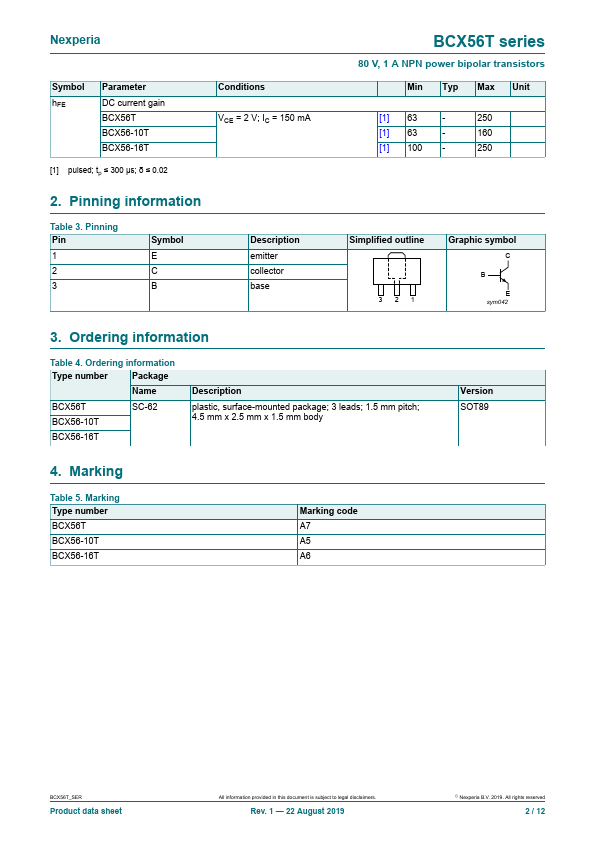

Symbol h FE
Parameter DC current gain BCX56T BCX56-10T BCX56-16T
[1] pulsed; tp ≤ 300 μs; δ ≤ 0.02
Conditions VCE = 2 V; IC = 150 m A
2....
