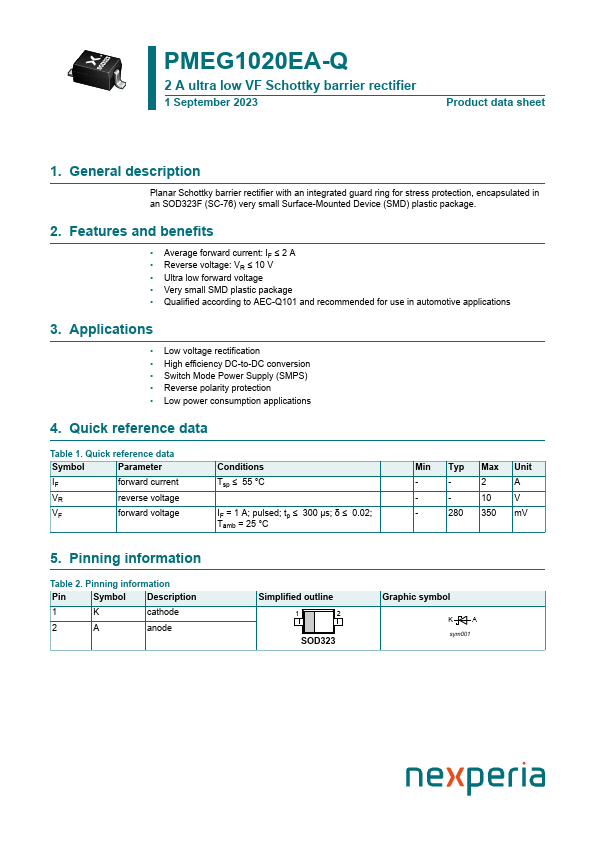

PMEG1020EA-Q
PMEG1020EA-Q is 2A ultra low VF Schottky barrier rectifier manufactured by Nexperia.
description
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in an SOD323F (SC-76) very small Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Average forward current: IF ≤ 2 A
- Reverse voltage: VR ≤ 10 V
- Ultra low forward voltage
- Very small SMD plastic package
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch Mode Power Supply (SMPS)
- Reverse polarity protection
- Low power consumption applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
IF forward current
VR reverse voltage
VF forward voltage
Conditions Tsp ≤ 55 °C
IF = 1 A; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
Min Typ Max Unit
- -
- -
- 280 350 m V
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
K cathode
A anode
Simplified...
