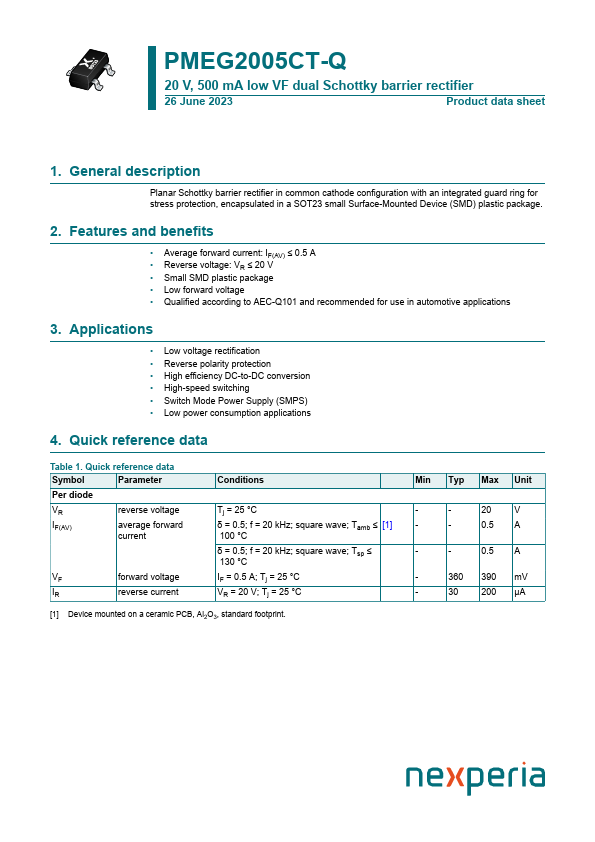

PMEG2005CT-Q
PMEG2005CT-Q is 20V 500mA low VF dual Schottky barrier rectifier manufactured by Nexperia.
description
Planar Schottky barrier rectifier in mon cathode configuration with an integrated guard ring for stress protection, encapsulated in a SOT23 small Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Average forward current: IF(AV) ≤ 0.5 A
- Reverse voltage: VR ≤ 20 V
- Small SMD plastic package
- Low forward voltage
- Qualified according to AEC-Q101 and remended for use in automotive applications
3. Applications
- Low voltage rectification
- Reverse polarity protection
- High efficiency DC-to-DC conversion
- High-speed switching
- Switch Mode Power Supply (SMPS)
- Low power consumption applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per diode
VR reverse voltage
IF(AV) average forward current
VF forward voltage
IR reverse current
Conditions
Tj = 25 °C δ = 0.5; f = 20 k Hz; square wave; Tamb ≤ [1] 100 °C δ = 0.5; f = 20 k Hz; square wave; Tsp ≤ 130 °C IF = 0.5 A; Tj = 25 °C VR = 20 V; Tj = 25 °C
[1] Device mounted on a ceramic PCB, Al2O3, standard footprint.
Min Typ Max Unit
- -
- -
0.5 A
- -
0.5 A
- 360 390 m V
- 30
200 µA
Nexperia
20 V, 500 m A low VF dual Schottky barrier rectifier

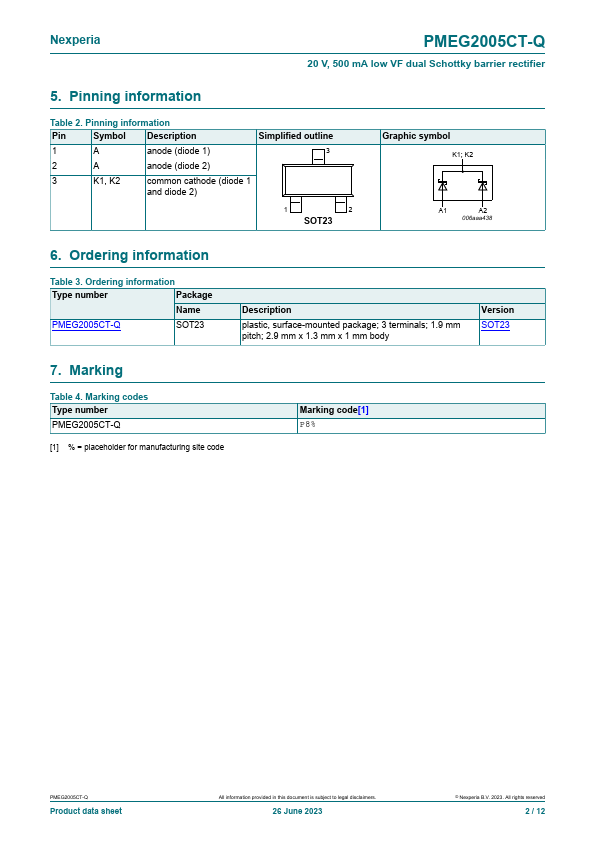

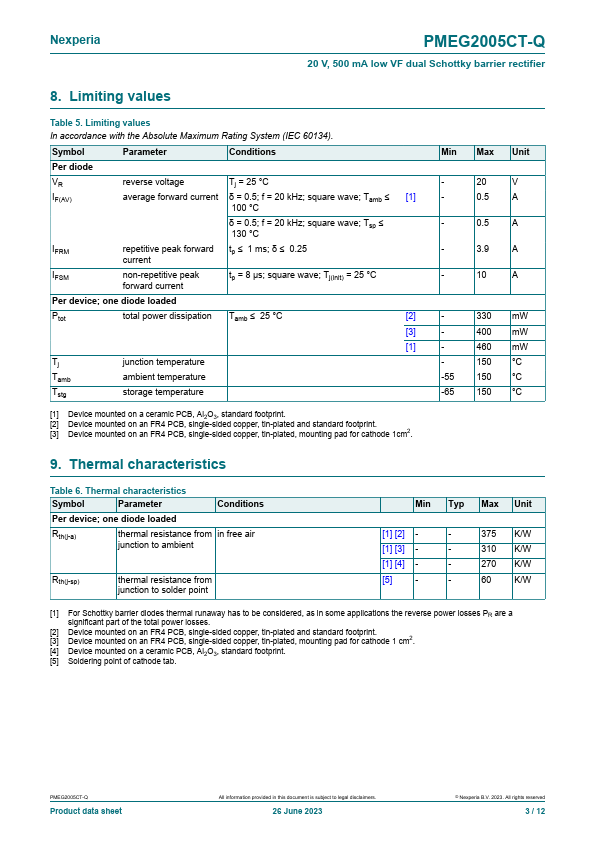

5. Pinning...
