Nexperia RB751S40
The marking bar indicates the cathode.| Part No. | RB751S40 |
|---|---|
| Datasheet | RB751S40 Download |
| Manufacturer |  Nexperia |
| Description | Schottky barrier diode |
| Buy | Stock & Price |

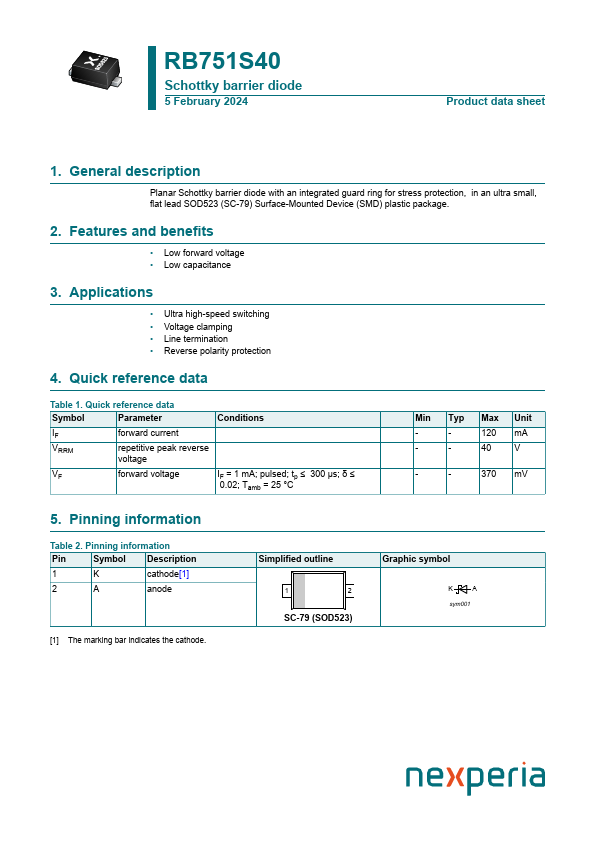

FEATURES AND BENEFITS
● Low forward voltage● Low capacitance 3.
APPLICATIONS
● Ultra high-speed switching● Voltage clamping
● Line termination
● Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF VRRM forward current repetitive peak reverse voltage VF forward voltage IF = 1 mA; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C Min Typ Max Unit - - 120 mA - - 40 V - - 370 mV 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION

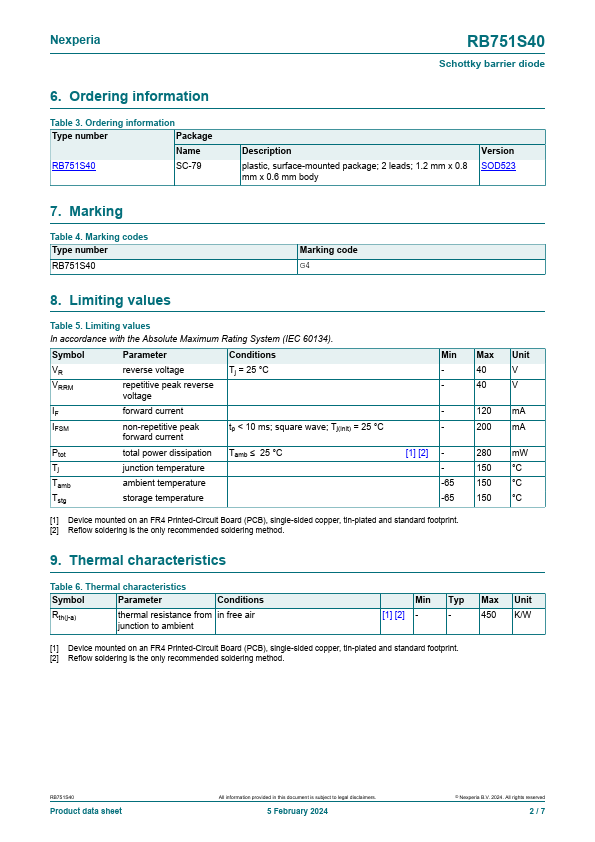

1 K cathode[1] 2 A anode [1] The marking bar indicates the cathode. Simplified outline 1 2 SC-79 (SOD523) Graphic symbol K A sym001 Nexperia RB751S40 Schottky barrier diode 6. Ordering information Table 3. Ordering information Type number Package Name RB751S40 SC-79DESCRIPTION
plastic, surface-mounted package; 2 leads; 1.2 mm x 0.8 mm x 0.6 mm body Version SOD523 7. Marking Table 4. Marking codes Type number RB751S40 Marking code G4 8. Limiting values Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134).
