M0564SG4AE Overview
Key Specifications
Package: LFQFP
Operating Voltage: 3.3 V
Max Voltage (typical range): 5.5 V
Min Voltage (typical range): 2.5 V
Description
The NuMicro® M0564 series microcontroller based on the ARM® Cortex® -M0 core operates at up to 72 MHz. It features adjustable VDDIO pins for specific I/O pins with a wide range of voltage from 1.8V to 5.5V for various operating voltages of external components, a unique high-speed PWM with clock frequency up to 144 MHz for precision control, and an integrated hardware divider to speed up the calculation for the control algorithms.

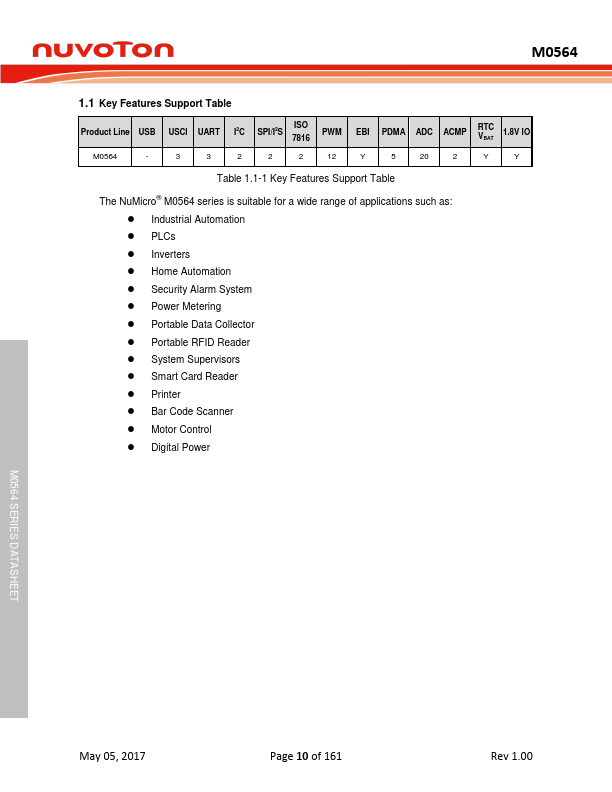

Key Features
- The M0564 series is ideal for industrial control, motor control and metering applications
- It also supports high immunity of 8KV ESD (HBM)/4KV EFT
