M467HJHAN
Description

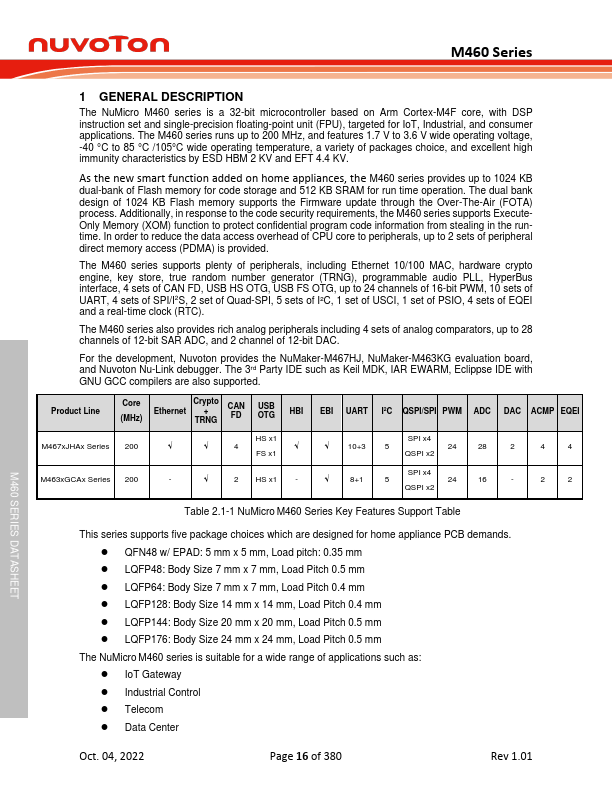

The NuMicro M460 series is a 32-bit microcontroller based on Arm Cortex-M4F core, with DSP instruction set and single-precision floating-point unit (FPU), targeted for IoT, Industrial, and consumer applications. The M460 series runs up to 200 MHz, and features 1.7 V to 3.6 V wide operating voltage, -40 °C to 85 °C /105°C wide operating temperature, a variety of packages choice, and excellent high immunity characteristics by ESD HBM 2 KV and EFT 4.4 KV.
Key Features
- QFN48 w/ EPAD: 5 mm x 5 mm, Load pitch: 0.35 mm
- LQFP48: Body Size 7 mm x 7 mm, Load Pitch 0.5 mm
- LQFP64: Body Size 7 mm x 7 mm, Load Pitch 0.4 mm
- LQFP128: Body Size 14 mm x 14 mm, Load Pitch 0.4 mm
- LQFP144: Body Size 20 mm x 20 mm, Load Pitch 0.5 mm
- LQFP176: Body Size 24 mm x 24 mm, Load Pitch 0.5 mm The NuMicro M460 series is suitable for a wide range of applications such as:
- IoT Gateway
- Industrial Control
- Telecom
- Data Center Oct. 04, 2022 Page 16 of 380 Rev 1.01
