M467SJHAN Datasheet | Nuvoton Technology

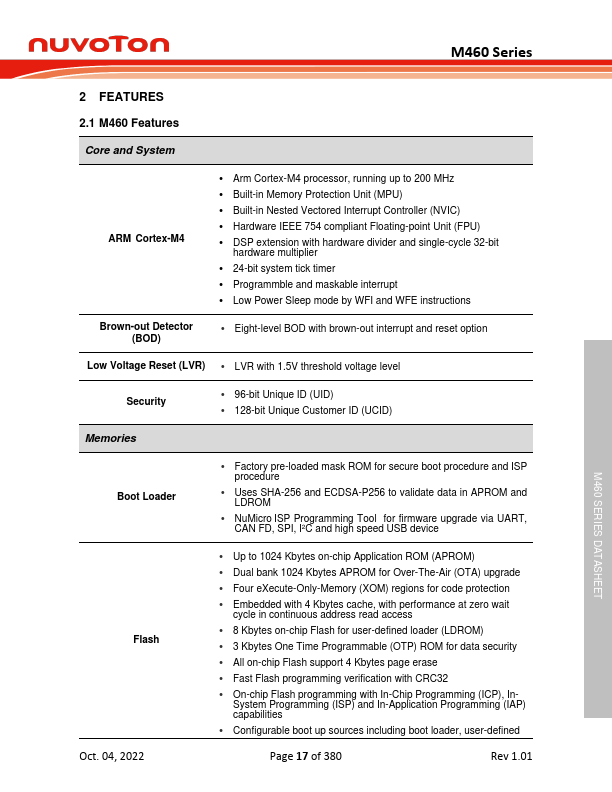

Key Features

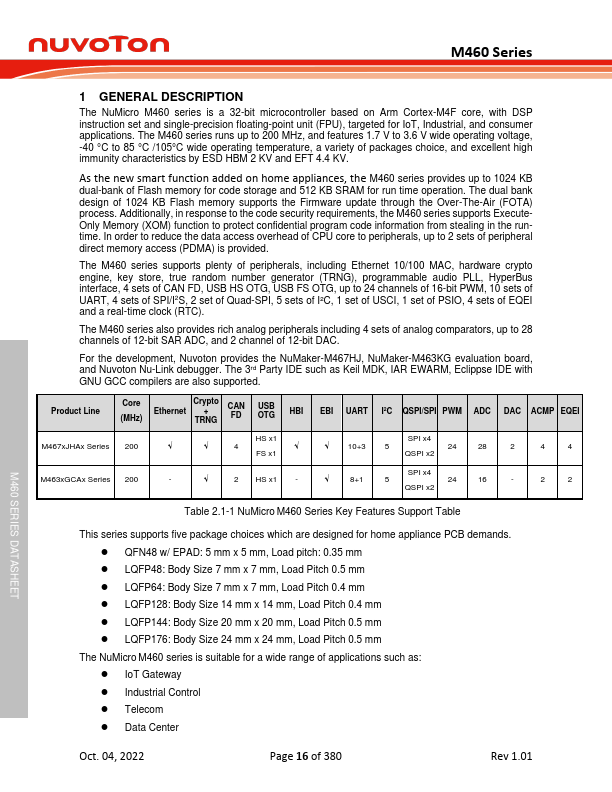

• 7 V to 3.6 V wide operating voltage, -40 °C to 85 °C /105°C wide operating temperature, a variety of packages choice, and excellent high immunity characteristics by ESD HBM 2 KV and EFT 4.4 KV. As the new smart function added on home appliances, the M460 series provides up to 1024 KB dual-bank of Flash memory for code storage and 512 KB SRAM for run time operation. The dual bank design of 1024 KB Flash memory supports the Firmware update through the Over-The-Air (FOTA) process. Additionally, in response to the code security requirements, the M460 series supports ExecuteOnly Memory (XOM) function to protect confidential program code information from stealing in the runtime. In order to reduce the data access overhead of CPU core to peripherals, up to 2 sets of peripheral direct memory access (PDMA) is provided. The M460 series supports plenty of peripherals, including Ethernet 10/100 MAC, hardware crypto engine, key store, true random number generator (TRNG), programmable audio PLL, HyperBus interface, 4 sets of CAN FD, USB HS OTG, USB FS OTG, up to 24 channels of 16-bit PWM, 10 sets of UART, 4 sets of SPI/I2S, 2 set of Quad-SPI, 5 sets of I²C, 1 set of USCI, 1 set of PSIO, 4 sets of EQEI and a real-time clock (RTC). The M460 series also provides rich analog peripherals including 4 sets of analog comparators, up to 28 channels of 12-bit SAR ADC, and 2 channel of 12-bit DAC. For the development, Nuvoton provides the NuMaker-M467HJ, NuMaker-M463KG evaluation board, and Nuvoton Nu-Link debugger. The 3rd Party IDE such as Keil MDK, IAR EWARM, Eclippse IDE with GNU GCC compilers are also supported. Product Line Core (MHz) Crypto Ethernet + TRNG CAN FD USB OTG HBI
