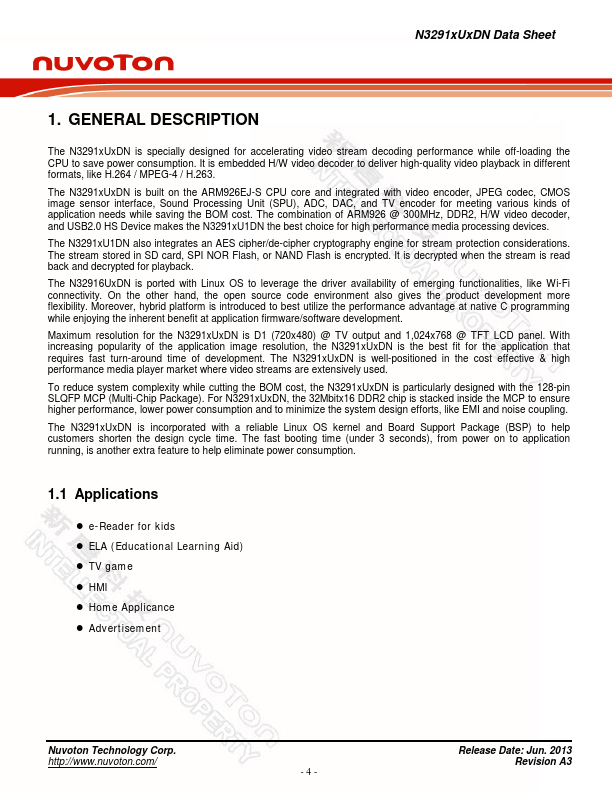

N32916U1DN Overview
The N3291xUxDN is specially designed for accelerating video stream decoding performance while off-loading the CPU to save power consumption. It is embedded H/W video decoder to deliver high-quality video playback in different formats, like H.264 / MPEG-4 / H.263. The N3291xUxDN is built on the ARM926EJ-S CPU core and integrated with video encoder, JPEG codec, CMOS image sensor interface, Sound Processing Unit (SPU),...

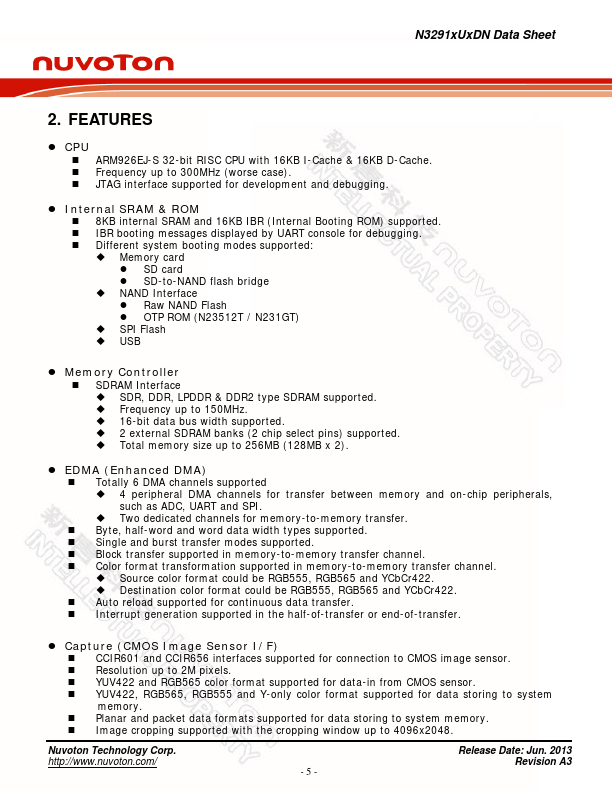

N32916U1DN Key Features
- ARM926EJ-S 32-bit RISC CPU with 16KB I-Cache & 16KB D-Cache
- Frequency up to 300MHz (worse case)
- JTAG interface supported for dev
