N584HP300 Overview

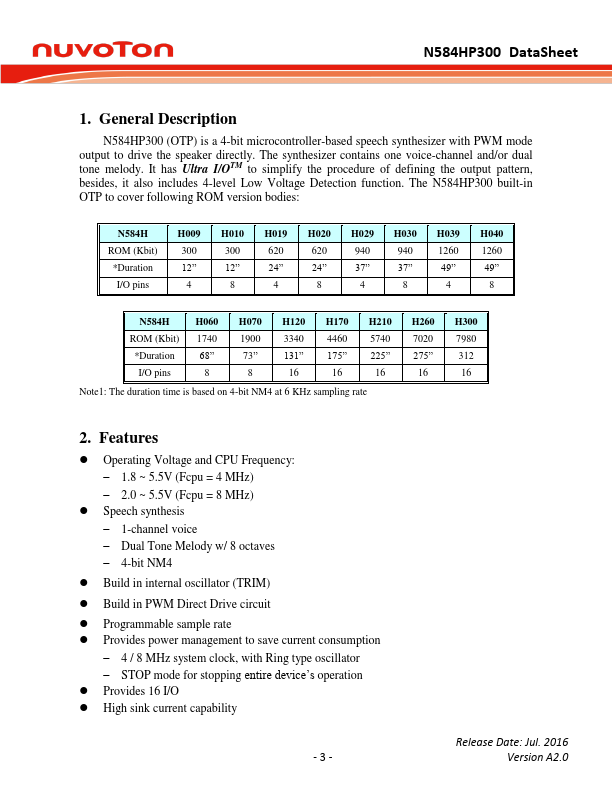

N584HP300 (OTP) is a 4-bit microcontroller-based speech synthesizer with PWM mode output to drive the speaker directly. The synthesizer contains one voice-channel and/or dual tone melody. It has Ultra I/OTM to simplify the procedure of defining the output pattern, besides, it also includes 4-level Low Voltage Detection function.
N584HP300 Key Features
- Operating Voltage and CPU Frequency: 1.8 ~ 5.5V (Fcpu = 4 MHz) 2.0 ~ 5.5V (Fcpu = 8 MHz)
- Speech synthesis 1-channel voice Dual Tone Melody w/ 8 octaves 4-bit NM4
- Build in internal oscillator (TRIM)
- Build in PWM Direct Drive circuit
- Programmable sample rate
- Provides power management to save current consumption
- Provides 16 I/O
- High sink current capability

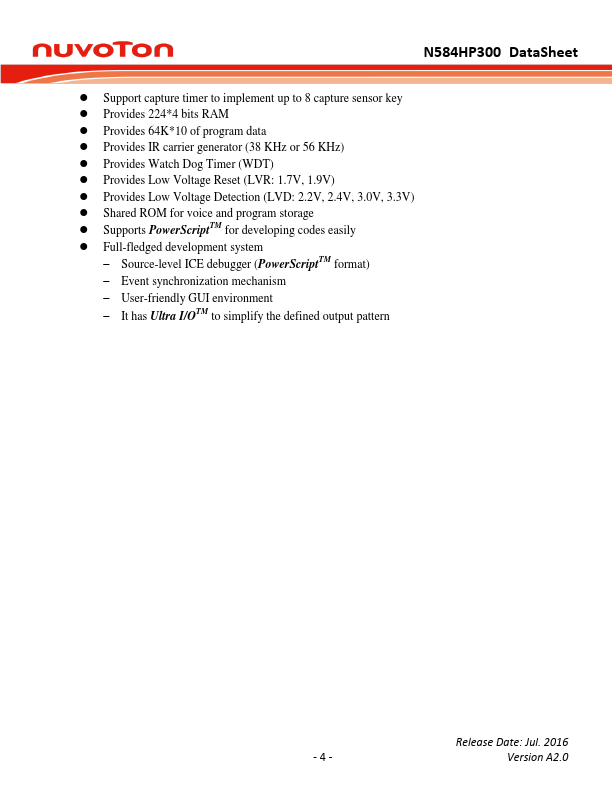

- Support capture timer to implement up to 8 capture sensor key
- Provides 224-4 bits RAM
