N9H31 Description

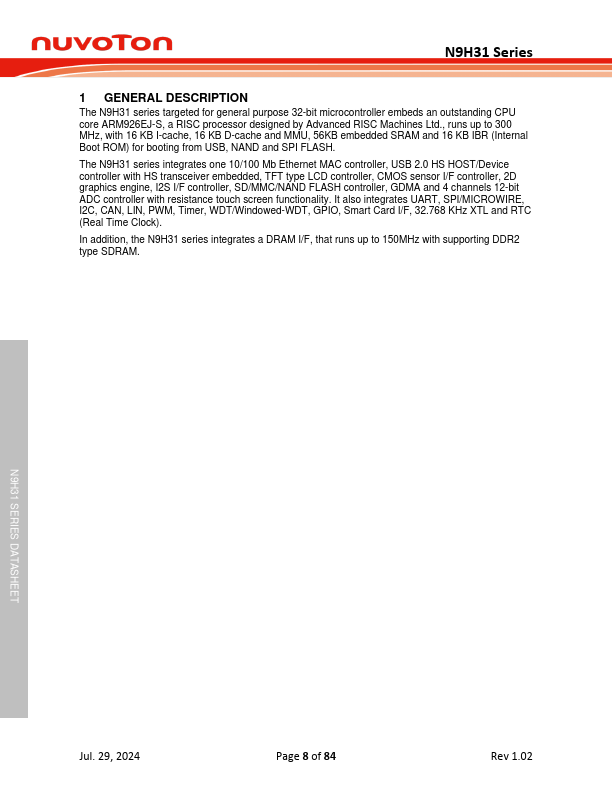

The N9H31 series targeted for general purpose 32-bit microcontroller embeds an outstanding CPU core ARM926EJ-S, a RISC processor designed by Advanced RISC Machines Ltd., runs up to 300 MHz, with 16 KB I-cache, 16 KB D-cache and MMU, 56KB embedded SRAM and 16 KB IBR (Internal Boot ROM) for booting from USB, NAND and SPI FLASH. The N9H31 series integrates one 10/100 Mb Ethernet MAC controller, USB 2.0 HS HOST/Device...
N9H31 Key Features
- Arm® ARM926EJ-S™ processor core runs up to 300 MHz
- Supports 16 KB instruction cache and 16 KB data cache
- Supports MMU
- Supports JTAG Debug interface
- DDR SDRAM Controller
- Supports LVDDR and DDR2 SDRAM
- Clock speed up to 150 MHz
- Supports 16-bit data bus width
- Memory size depended on embedded SDRAM configuration by different part number
- Embedded SRAM and ROM
