Nuvoton Technology NM1230
The NM1230 series can run up to 48(72) MHz and operate at 2.2V(3.3V) ~ 5.5V, -40℃ ~ 105℃, and thus can support a variety of industrial control applications which need high CPU performance. The NM1230 offers 64 Kbytes embedded program Flash, size configurable Data Flash (shared with program flash), 7.5 Kbytes Flash for the ISP, 1.5 Kbytes SPROM for security, and 16Kbytes SRAM. These useful functions make the NM1230 powerful for a wide range of applications.| Part No. | NM1230 |
|---|---|
| Datasheet | NM1230 Download |
| Manufacturer |  Nuvoton Technology |
| Description | 32-bit Microcontroller |
| Buy | Stock & Price |

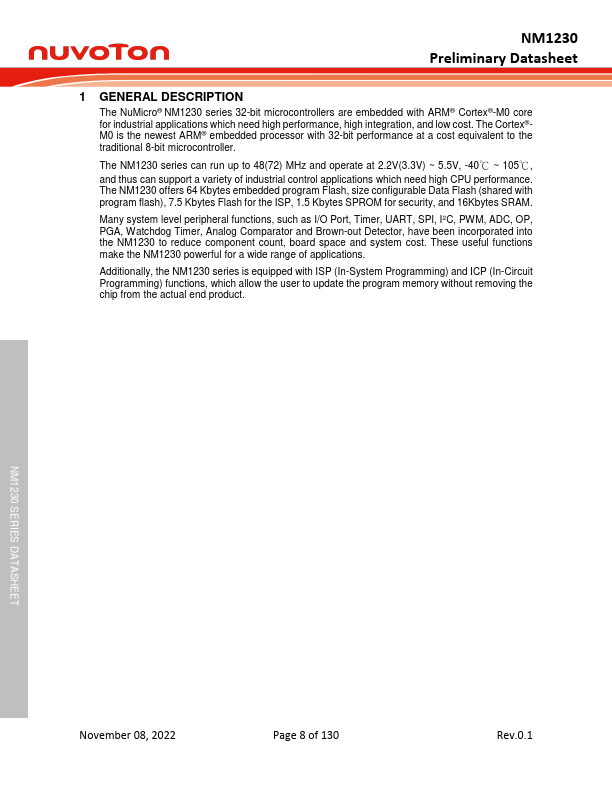

GENERAL DESCRIPTION
The NuMicro® NM1230 series 32-bit microcontrollers are embedded with ARM® Cortex® -M0 core for industrial applications which need high performance, high integration, and low cost. The Cortex® M0 is the newest ARM® embedded processor with 32-bit performance at a cost equivalent to the traditional 8-bit microcontroller. Many system level peripheral functions, such as I/O Port, Timer, UART, SPI, I2C, PWM, ADC, OP, PGA, Watchdog Timer, Analog Comparator and Brown-out Detector, have been incorporated into the NM1230 to reduce component count, board space and system cost. Additionally, the NM1230 series is equipped with ISP (In-System Programming) and ICP (In-Circuit Programming) functions, which allow the user to update the program memory without removing the chip from the actual end product. NM1230 SERIES DATASHEET November 08, 2022 Page 8 of 130 Rev.0.1 NM1230 Preliminary Datasheet 2FEATURES
● Core● ARM® Cortex® -M0 core running up to 48/72 MHz by internal RC oscilla...
