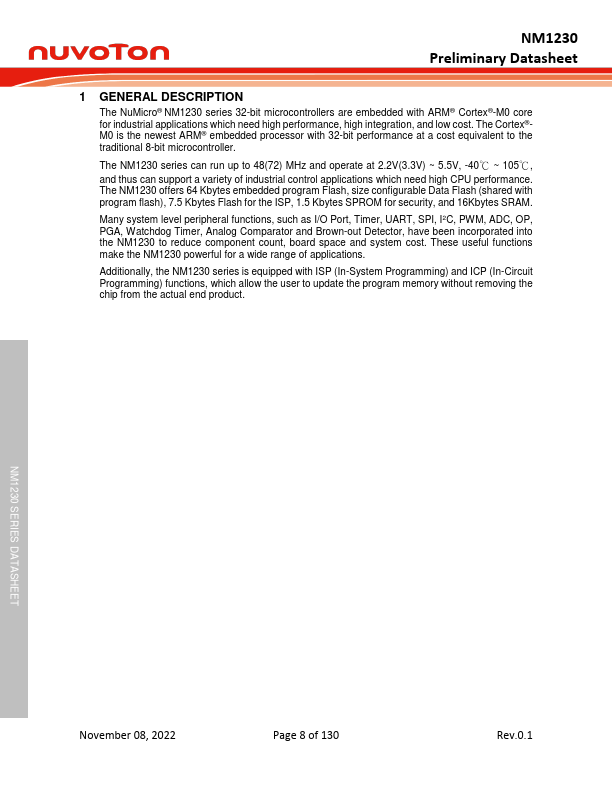

NM1234D Description
The NuMicro® NM1230 series 32-bit microcontrollers are embedded with ARM® Cortex® -M0 core for industrial applications which need high performance, high integration, and low cost. The Cortex® M0 is the newest ARM® embedded processor with 32-bit performance at a cost equivalent to the traditional 8-bit microcontroller. The NM1230 series can run up to 48(72) MHz and operate at 2.2V(3.3V) ~ 5.5V, -40℃ ~ 105℃, and thus...

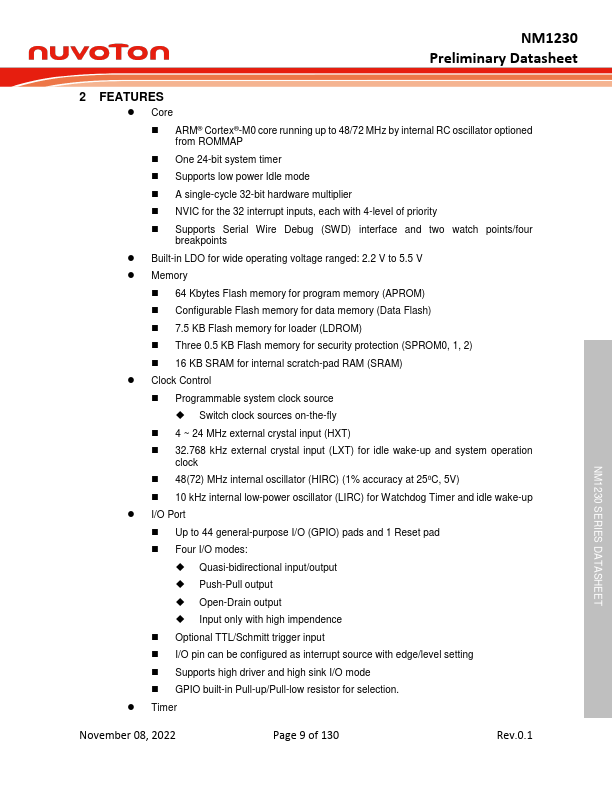

NM1234D Key Features
- ARM® Cortex® -M0 core running up to 48/72 MHz by internal RC oscillator optioned from ROMMAP
- One 24-bit system timer
- Supports low power Idle mode
- A single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-level of priority
- Supports Serial Wire Debug (SWD) interface and two watch points/four breakpoints
- Built-in LDO for wide operating voltage ranged: 2.2 V to 5.5 V
- Memory
- 64 Kbytes Flash memory for program memory (APROM)
- Configurable Flash memory for data memory (Data Flash)
