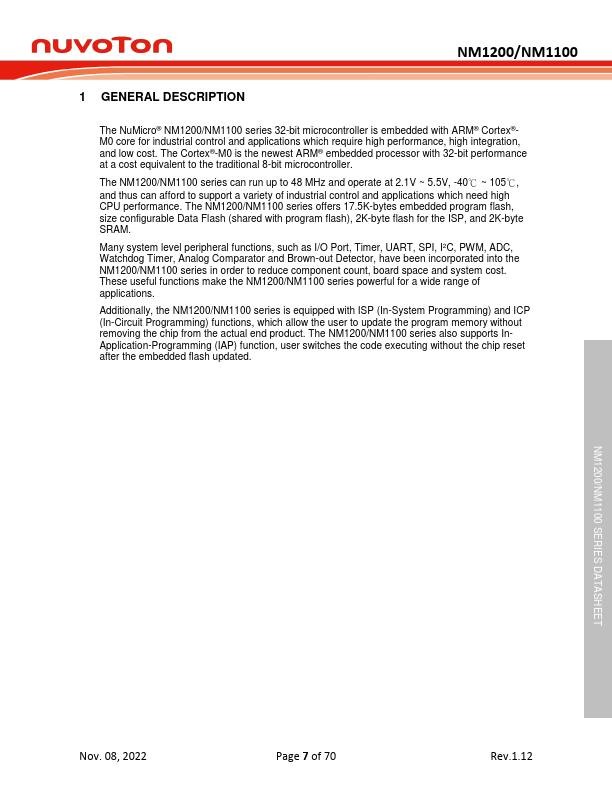

NM1200 Overview
The NuMicro® NM1200/NM1100 series 32-bit microcontroller is embedded with ARM® Cortex® M0 core for industrial control and applications which require high performance, high integration, and low cost. The Cortex® -M0 is the newest ARM® embedded processor with 32-bit performance at a cost equivalent to the traditional 8-bit microcontroller. The NM1200/NM1100 series can run up to 48 MHz and operate at 2.1V ~ 5.5V, -40℃...

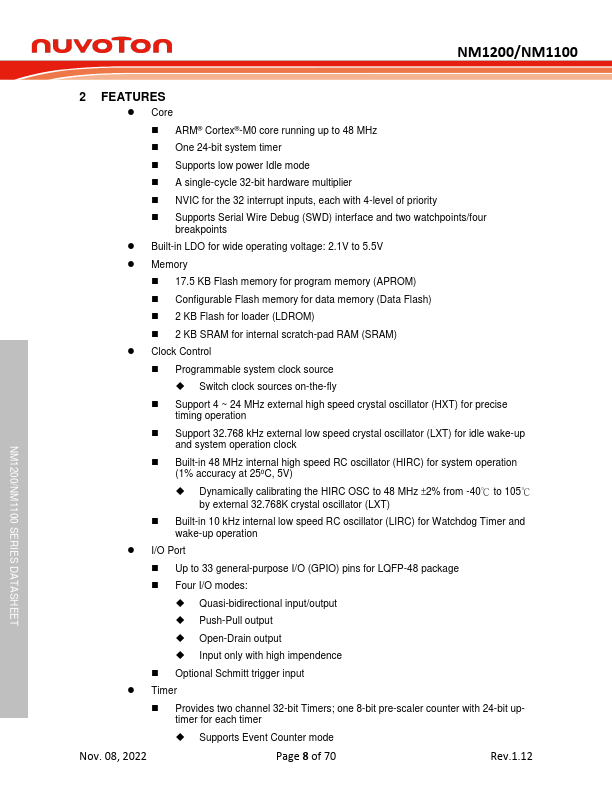

NM1200 Key Features
- ARM® Cortex® -M0 core running up to 48 MHz
- One 24-bit system timer
- Supports low power Idle mode
- A single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-level of priority
- Supports Serial Wire Debug (SWD) interface and two watchpoints/four breakpoints
- Built-in LDO for wide operating voltage: 2.1V to 5.5V
- Memory
- 17.5 KB Flash memory for program memory (APROM)
- Configurable Flash memory for data memory (Data Flash)
