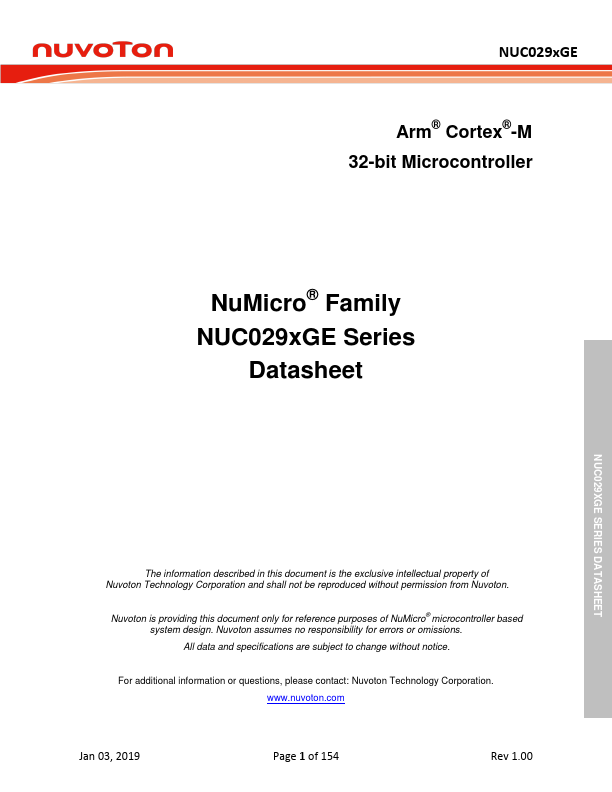

NUC029x GE Arm® Cortex® -M 32-bit Microcontroller Nu Micro® Family NUC029x GE Series NUC029XGE SERIES DATASHEET The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of Nu Micro® microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions. All data and specifications are subject to change without notice. For additional information or questions, please contact: Nuvoton Technology Corporation. .nuvoton. Jan 03, 2019 Page 1 of 154 Rev 1.00 NUC029x GE 1 GENERAL DESCRIPTION The Nu Micro® NUC029x GE of NUC029 series microcontroller based on the Arm® Cortex® -M0 core operates at up to 72 MHz. With its crystal-less USB 2.0 FS interface, it is able to generate precise frequency required by USB protocol without the need of external crystal. It Features adjustable VDDIO pins for specific I/O pins with a wide range of voltage from 1.8 V to 5.5 V for various operating voltages of external ponents, a unique high-speed PWM with clock frequency up to 144 MHz for precision control, and an integrated hardware divider to speed up the calculation for the control algorithms. Apart from that, the NUC029x GE also integrates SPROM (Security Protection ROM) which provides a secure code execution area to protect the intelligent property of developers. The Nu Micro® NUC029x GE of NUC029 series is ideal for industrial control, motor control and metering applications. The Nu Micro® NUC029x GE of NUC029 series supports the wide voltage range from 2.5 V to 5.5 V and temperature ranging from -40℃ to 105℃, up to 256 Kbytes of Flash memory, 20 Kbytes of SRAM, 4 Kbytes of ISP (In-System Programming) ROM as well as ICP (In-Circuit Programming) ROM and IAP (In-Application Programming) ROM in 48-, 64-, 128-pin packages. It also supports high immunity of 8KV ESD (HBM)/4KV...
