NUC100LC1DN Description
The NuMicro® NUC100 series 32-bit microcontroller (MCU) is embedded with the ARM® Cortex® M0 core with the cost equivalent to traditional 8-bit MCU. The NUC100 series can be used in consumer electronics, industrial control and applications which requiring rich munication interfaces such as industrial automation, alarm system, energy system and power system. The NuMicro® NUC100 Advanced Line and NUC120 USB Line are...

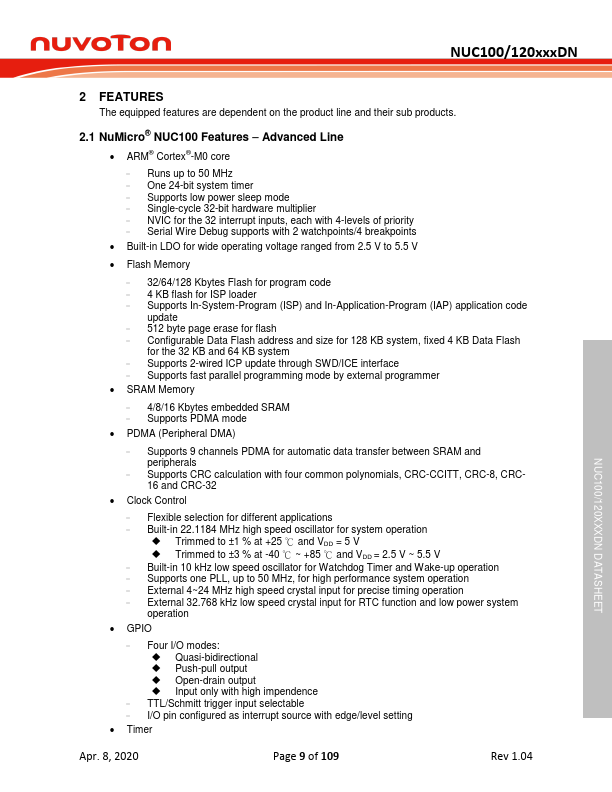

NUC100LC1DN Key Features
- Advanced Line
- ARM® Cortex® -M0 core
- Runs up to 50 MHz
- One 24-bit system timer
- Supports low power sleep mode
- Single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-levels of priority
- Serial Wire Debug supports with 2 watchpoints/4 breakpoints
- Built-in LDO for wide operating voltage ranged from 2.5 V to 5.5 V
- Flash Memory
