NUC100VE3DN Overview
Key Specifications
Package: LFQFP
Pins: 100
Operating Voltage: 3 V
Max Voltage (typical range): 5.5 V

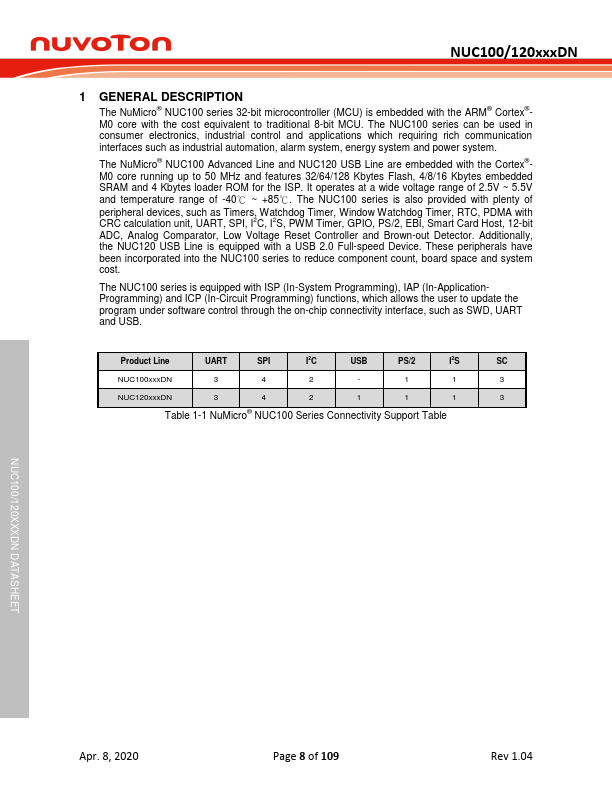

Description
The NuMicro® NUC100 series 32-bit microcontroller (MCU) is embedded with the ARM® Cortex® M0 core with the cost equivalent to traditional 8-bit MCU. The NUC100 series can be used in consumer electronics, industrial control and applications which requiring rich communication interfaces such as industrial automation, alarm system, energy system and power system.

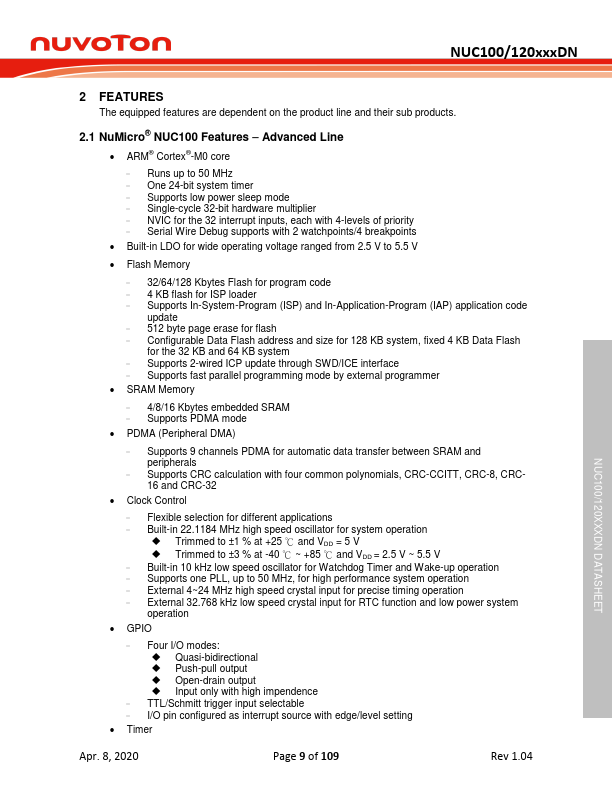

Key Features
- 32/64/128 Kbytes Flash, 4/8/16 Kbytes embedded SRAM and 4 Kbytes loader ROM for the ISP
- It operates at a wide voltage range of 2.5V ~ 5.5V and temperature range of -40℃ ~ +85℃
- Additionally, the NUC120 USB Line is equipped with a USB 2.0 Full-speed Device
- These peripherals have been incorporated into the NUC100 series to reduce component count, board space and system cost
- The NUC100 series is equipped with ISP (In-System Programming), IAP (In-Applic
