NUC123LC2AE1 Description

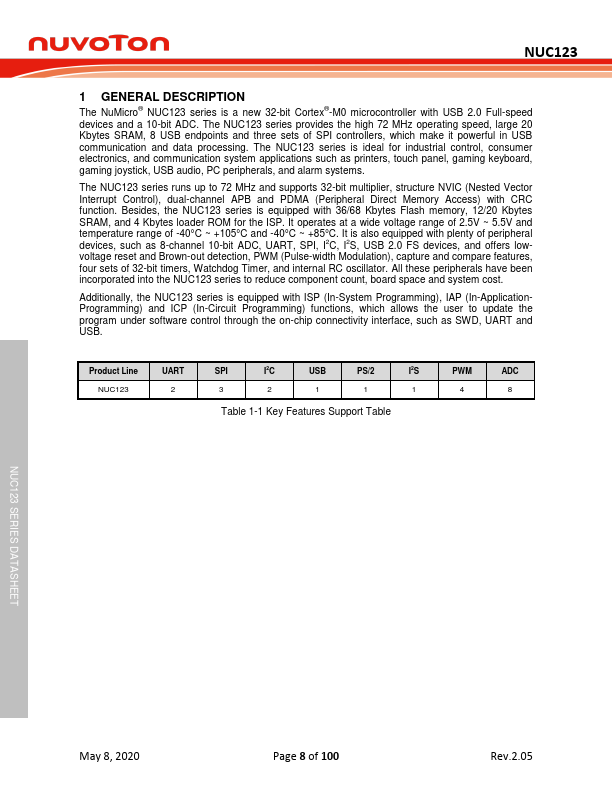

The NuMicro® NUC123 series is a new 32-bit Cortex® -M0 microcontroller with USB 2.0 Full-speed devices and a 10-bit ADC. The NUC123 series provides the high 72 MHz operating speed, large 20 Kbytes SRAM, 8 USB endpoints and three sets of SPI controllers, which make it powerful in USB munication and data processing. The NUC123 series is ideal for industrial control, consumer electronics, and munication system...

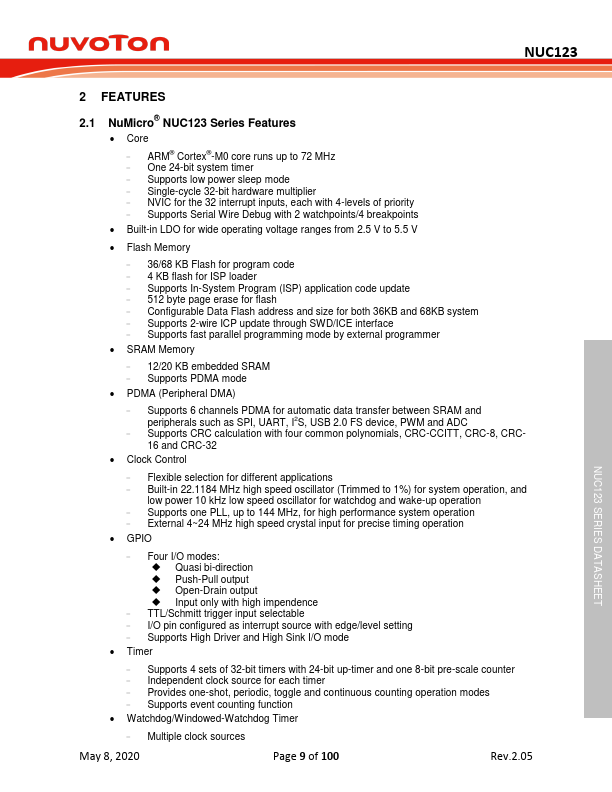

NUC123LC2AE1 Key Features
- ARM® Cortex® -M0 core runs up to 72 MHz
- One 24-bit system timer
- Supports low power sleep mode
- Single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-levels of priority
- Supports Serial Wire Debug with 2 watchpoints/4 breakpoints
- Built-in LDO for wide operating voltage ranges from 2.5 V to 5.5 V
NUC123LC2AE1 Applications
- ARM® Cortex® -M0 core runs up to 72 MHz
